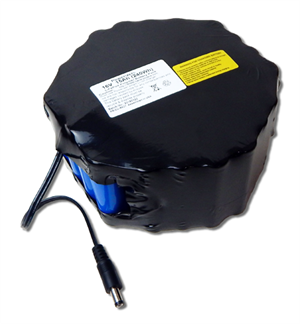

Custom LiFePO4 18650 Battery Pack: 16V 15Ah (240Wh, 7A rate)

Your Price: $287.00
Call to Order.

Product ID # 11251
Part Number:
PR-CU-R627

Lead Time: TBC


Features

*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Packing
  • Custom 16V 15Ah LFP pack made of 50 pcs of 18650 cell in 5S10P configuration (PCB locate on top)
  • wrapped by thin PVC shrink wrap
Voltage 16V (working)   18.0V (peak)  12.5V ( cut-off)
Capacity 15000mAh (240Wh)
Cycle life > 1000 cycles (80% of initial capacity @ 0.2C rate, IEC Standard)
Protection
  • 1x  7A PCB installed on top of the battery pack to protect the battery from
    • Overcharge (> 19.5V)
    • Over discharge  (<11.5V)
    • Over drain ( >7.0Amp)
    • Short circuits

    1x 7A Polyswitch

Prewired
Charging rate 1.5A recommended (cell), 7A max
Max. Discharging Rate 7Amp limited by Polyswitch
Dimensions(DiaxH) 6" x 2.6" (152mm x 70mm)
Weight 4lbs 8.6oz (2060g)

Applications

Warnings

Please click Knowledge on LiFePO4 battery to learn more detail
