Smart Charger (3.0 A) for 12.8V (4 cells) LiFePO4 Battery Pack, 110-240VAC - CE / FCC -*


CH-LF1283T: 5.5x2.1mm MaleCU-N136With Anderson ConnectorCU-JAS213With Car PlugWith Delphi ConnectorCU-J1067: Amphenol connectorPR-CU-R592:TE172343-1CH-LF1283-V1CH-LF1283-V2CH-LF1283-V3
Your Price: From $35.95 to $50.95

Product Options

Connector:

Features

Feature
  • This Smart Charger is designed for rapidly charge 12.8V(4 Cells) LiFePO4 battery with capacity > 3Ah.
  • It features a three stages charging mode ( Constant Current, Constant Voltage , Trickle charge mode) without overcharge the battery
  • Internal Resettable fuse" is installed inside a charger
Input 90 to 240 VAC, 50/60Hz, Max current 1.5A
Output 14.5V+/-0.20VDC 3.0A
Charging State

Active State

Model

Output current

Output voltage

Bi-color LED

1.Fast Charge

CC mode

3.0A

14.5V+/-0.20V

Red

2.Continue Charge

CV mode

3.0A or below

14.5V+/-0.20V

Red

3.Stand-by charge

<0.6A about

14.5V+/-0.20V

Green

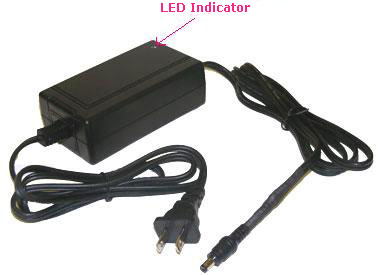

LED Indicator
  • Solid Red LED = Charging (0-99%)
  • Solid Green LED = Fully charged (100%)
Dimension(LxWxH) 118mm(4.6") x 64mm(2.5") x 40mm(1.6")
Weight 320grams ( 11.2 Oz)
Certification FCC / CE, Recognized or tested by one of NRTL (National Recognized Testing Laboratory) , for more information, please contact us
Warning No Reverse Polarity Protection
California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings

Connector Options

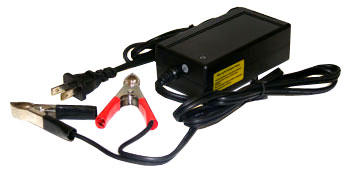

CH-LF1283: Alligator Clips, 3' 8" Cable
CH-LF1283T: 5.5x2.1mm Male
CU-MM180: Anderson for both AC input & DC output
CU-JAS213: Anderson for DC output
CH-LF1283CP: 12" Car Plug
 CU-J252: Delphi
  • Delphi Packard  2 Position Weather pack Shroud P/N: 12010973 Qty = 1
    • White wire - position A = +
    • Black wire - position B = -
    • Pins:  for 18-20 AWG wire. P/N: 12089040 Qty = 2
    • Cable Seal (Red): P/N: 12015899 Qty = 2
  • CU-J1067:  with customer provided Amphenol Connector
    • Pin 1 = -
    • Pin 3 = +
  • PR-CU-R592 : (TE 172343-1 and 770903-1), Pin 1= latch side (+)

Please download the Specification here
