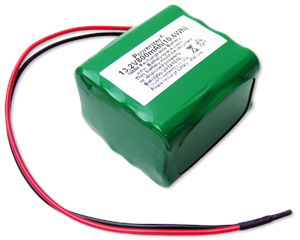

Custom NiMH Battery Pack: 13.2 V 800mAh (11xAAA) offset pack

Your Price: $15.50
In Stock

Product ID # 9061
Part Number:
CU-J970

Custom pack need 5 business days to build!


Quantity Discounts

QuantityAmount
25 to 50$14.72
51 to 100$13.95
101 to 500$13.17

Features

Packing
  • Custom 13.2V,  800 mAh battery pack is made of 11 pcs AAA size 800mAh NiMH cells.  assembled in 4x3x4 configuration
  • Wrapped by thin plastic PVC
Voltage      13.2V ( working )    15.4V ( peak)
Capacity      800 mAh   or  10.6wh
Prewired       Charge/Discharge Terminals: 6.0" 24AWG open end wires
Protection      1 x  65C thermostat installed in the pack to protect over heating
Charging Rate      Standard 0.4 A    Max. 800mA
Discharging Rate      Standard rate: 800mA
Dimensions(LxWxH)      48mm (1.9")  x 29mm (1.14")x 45mm (1.8")
Weight      132g (4.6oz)
Notes Things to know about Nimh Batteries

Warnings

  • Please don't discharging the battery pack below 11V  ( 1.0 V / cell)  Deep discharging may damage NiMH battery pack.
  • Charging battery immediately every time it is discharged. Never storage the battery pack at below 10V.
