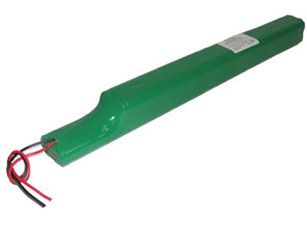

Custom NiMH Battery Pack: 13.2V, 9000mAh Long pack

Your Price: $116.50
In Stock

Product ID # 7026
Part Number:
PR-CU-R309

Lead Time: 5 Business Days!

Personalizations

* denotes required field

output connector*


Quantity Discounts

QuantityAmount
25 to 50$110.67
51 to 100$104.85
101 to 500$99.02
Packing
Voltage      13.2 V ( working )    16 V ( peak)
Capacity      9000 mAh   or  118.8 Wh
Charging Rate      Standard 1.8 A     Max. 2.2 A
Discharging Rate
  • Standard rate: 2.2 Amp  ( Recommended and warranted)
  • Highest rate for continuous running:  4.2 Amp
  • Max. current 5 Amp ( limited by 65C thermostat
 Protection
 Pre-wired
  • 6.0" 18 AWG open end wire or
  • optional choice with 6.0" 18AWG Anderson connector
 Dimension (LxWxH)     16.2" (412mm) x 1.5" (38mm) x 1.5" (38mm)
 Net Weight     3.0 lbs 2.2 Oz (1420 grams)
Applications
  • custom
Tips & Optional
 Cautions
  • Please don't discharging the battery pack below 11V  ( 1.0 V / cell).  Deep discharging may damage NiMH battery pack.
  • Charging battery immediately every time it is discharged. Never storage the battery pack at below 11V.
  • Please read more safety warning  at the link before buying
Notes Things to know about Nimh Batteries
