Compact Smart Charger (0.4 A ) for 12 V - 16.8V NiMH/ NiCd Battery Packs - CE Listed

Your Price: From $17.99 to $19.95

Product Options

Connectors:


Features

Feature
  • Smart Charger for any NiMH /NiCd battery packs from 12V-16.8V (10-14 cells battery packs)
  • Compact size, directly plug in without power cord, and easy to carry
  • Automatically detect battery pack's voltage
  • Built in IC will recognize battery pack voltage ( from 12V- 16.8V ) automatically
  • Idea for battery pack with capacity > 400 mAh - 6000 mAh
  • Using Pulse and Negative pulse technology ( 10% negative pulse ) to avoid battery overheating and polarized during fast charging, Significantly increasing battery pack's cycle life.
Input Voltage 90-260Vac
Charging Current 0.4A
Protection
  • Automatically cut-off by negative delta V when battery pack get fully charged
  • Protection fuse for over current
  • Has short circuit & reverse polarity protection
LED
  • Red LED - charging.
  • Green LED - fully charged
Dimension(LxWxH) 3.2"x 2.1" x 2.8"
Weight 4.3oz. (122 g)
Certificate  CE Listed

Connector Options

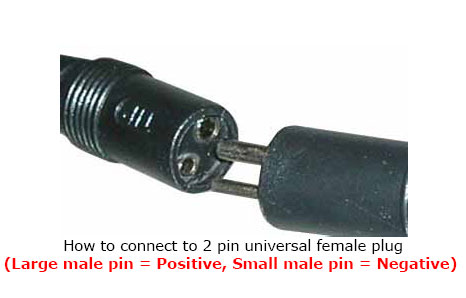

  • Option 1: CH-UN1216UD: 2 pin universal male plug
    • Large male pin = Positive,  Small male pin = Negative
    • For example; If the pack was two pin universal female plug, must plug Large male pin to Large female pin, Small male pin to Small female pin .

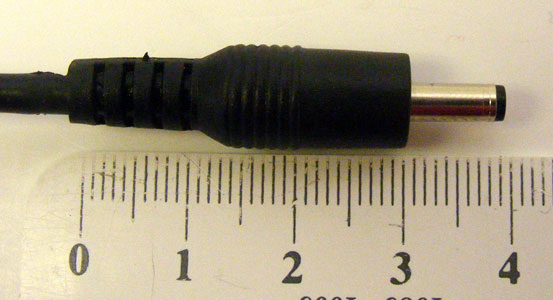

  • Option 2: Part no: CU-J107, 5.5 x 2.1mm Male barrel connector.
    • This charger require a custom label to add on!
  • Option 3: Part no: PR-CU-R187, 5.5 x 2.1mm Barrel Female with 6" wire
  • Option 4: Part no: CU-J566, 3.5x1.3x9.0mm Male Plug. Minimum requirement: 100pcs .
  • Option 5: Part no: CH-UN1216UD-V1, 5.5x2.5mm Male Plug
  • Option 6: Part no: CH-UN1216UD-V2, 5.5x2.5mm Female Jack with 36" wire

Please download the Specification here

Warnings

  • Please plug in AC power first, then connect the battery to the charger, otherwise, there is no output from the charger.
