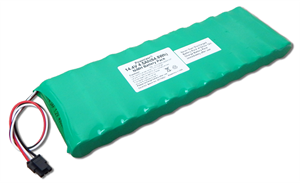

NiMH Battery Pack: 14.4 V 4500mAh ( 64.8Wh, 12S/S, MH-4/3AF4500) with Molex Connector
Your Price: $89.50
Out of stock

Product ID # 9361
Part Number: CU-K103

Lead time 5-10 Business Days
Add to a new shopping list

Quantity Discounts

QuantityAmount
25 to 50$85.02
51 to 100$80.55
101 to 500$76.07

Features

Battery Battery pack made of high quality NiMH 12 x 4/3AF  cells of  4500 mAh .
Voltage 14.4 V
Capacity 4500mAh  ( 60.5 Wh)
Protection 1 pc Thermister NTCLE100E3103JB0
1 pc 420 polyswitch
Prewired     6" 22AWG wire  with Molex connector 0436450300
  • Pin 1= Red
  • Pin 2= White 6" long
  • Pin 3= Black
Dimension(LxWxH) 219mm(8.62")x19mm(0.75")x71mm(2.68")
Weight 1.35lb (612g)
Notes Things to know about Nimh Batteries

Applications

  • Bike lighting for HID and Halogen to get longer burn time in lower cost than Li-Ion pack
  • Over drive 12V DC motor for Robot to get fast speed.
