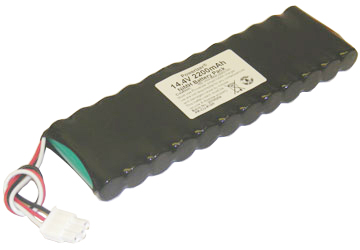

NiMH Rechargeable Battery: 14.4V 2200mAh (31.68 Wh, 12S/S, MH-AA2200B)

Option 1: with JST VHR-4N Connector
Option 1: with JST VHR-4N ConnectorJST VHR-4N connector for option 1Option 2: with Molex 39-01-4030 connector (supply by customer) Molex 39-01-4030 connector
Your Price: $65.00
Lead time : 10 Business Days!

Product Options

Connectors Option:
 Packing
 Voltage  Voltage:14.4 (working), 17V ( peak), 12V ( min.)
 Capacity  2200 mAh, 31Wh
 Protection  1 pcs 10K @ 25C Thermistor installed to protect overcharging
 Prewired
  • Option 1: Charging / Discharging Terminals: With JST VHR-4N connector
    • 1x JST # VHR-4N
    • 4x JST # SVH-21T-P1.1
      • Pin 1: Battery+ : 6" 18 AWG red wire
      • Pin 2: Battery- : 6" 18 AWG black wire
      • Pin 3 & Pin 4 : 6" 22 AWG white wire
  • Option 2: Charging / Discharging Terminals:
    • 5" 20AWG cables with Molex 39-01-4030 connector.
      • pin 1 - Neg,
      • Pin 2 - Pos.,
      • Pin 3 - thermistor.
 Standard Continous Discharge Rate

 2200 mA
 Battery Dimensions(LxWxH)  176mm(7") x 54mm(2.1") x 15mm(0.6")
 Battery Weight  12.20 Oz (350 grams)
 Warnings
  • Please never short circuit the battery
  • Do not discharge the battery pack below 12V ( 1.0 V / cell). Deep discharging may damage NiMH battery pack.
  • For more safety warning please see the link here
  • Please check and match the polarity of our connector to your device. We are NOT liable for any damage to your device due to reverse polarity.
Notes Things to know about Nimh Batteries
