Li-Ion 10440 Cylindrical Cell (AAA size) 3.7V 350mAh (LC-10440, Flat Top) - UN38.3 Passed & IEC62133:2012 Listed
|
|
Your Price: From $2.95 to $3.45
Product Options
| Add Tabs?: |
|
|
Features
| Features |
- 3.7V 10440 size Cylindrical Li-Ion Cell, same size as AAA 1.2V rechargeable NiMH and NiCd battery
- No memory effect and longer storage life than NiMH Batteries
- Lighter weight and higher energy density than any other rechargeable battery
- 10440 cell has same size as an AAA size battery, but has 3 times higher voltage
- This is flat top cell, if you need button top cell, please check (LC-10440A) - Note: Due to button top is too small for welding not recommend to assemble battery pack!
|
| Nominal Voltage |
Average 3.7 V |
| Nominal Capacity |
350 mAh, |
| Max.Charging Current |
0.35A Max. |
| Max.Discharging Current |
0.35A max. |
| Dimensions(DxH) |
10.2mm x 43mm |
| Weight |
0.3 oz (8 g) |
| Internal Impedance |
Internal Impedance: less or equal to110 milli-ohm (with PTC) |
| Cycle Performance |
80% of initial capacity at 300 cycles |

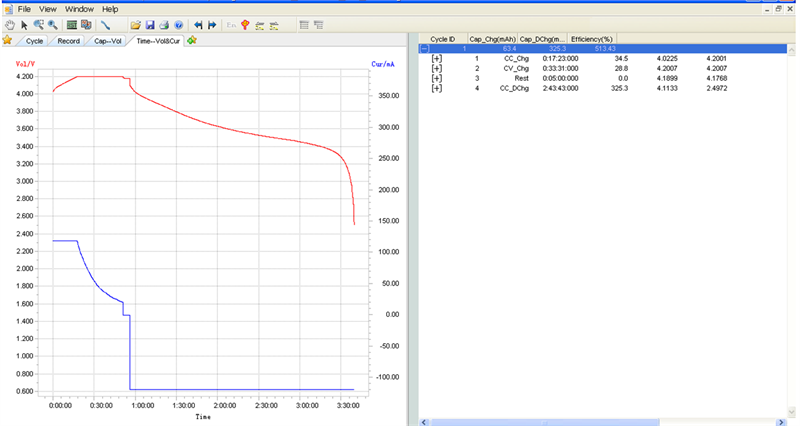

| Discharge Curve |
LC-10440 Discharge Curve |
Please download the Specification here
Applications
- Can use special PCB (protection IC) to build 10440 battery pack.
- Utility metering, Automatic meter reading, Alarm and security device, Memory back up, Tracking system, RC Cars and RC
|
Warnings
- Li-Ion Batteries may explode if charged or discharged improperly.
- You must possess knowledge of electronic and understand hot to handle Li-ion battery.
- We reserve the right not to sell and void the warranty it you don't meet the above statement.
- You must use a protection IC (PCB) to keep battery from overcharge and over discharge
- Never solder directly onto the Li-ion battery as overheat might cause battery to explode. If you are making a pack or need to solder batteries together, you need to get battery with tabs on it. You will solder to tabs instead directly onto the battery.
- Please read more safety warning about Li-ion battery (click to link)
- California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
|
Related Products
- For DIY, you may add tabs as an option at a little extra cost
- Please install our PCB or your own PCB withthe followingfeature:
- 4.2V/cell over-charge protection
- 2.5V/cell over-discharge protection
- Max currentover-drain protection
- Shortcircuit protection.
- Please choose our Smart Li-Ion Battery Chargers and Battery holder to charge single Li-Ion cell one at a time.
- Excellent cells to build a battery pack, Please click here to view battery pack made by LC-10440
- Never use conventional DC charger to recharge the Li-Ion battery.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
