Free Fall Tester with Remote Control for Lithium Batteries - IEC62133 7.3.3
Your Price: RFQ
Email for Lead Time

Product ID # 6792
Part Number: BS-100

Personalizations

Add to a new shopping list
Specification:

Power
  • 208 - 240VAC , single phase, 50/60Hz
  • 110VAC is available upon request via a 1500W transformer
  • Power consumption: 1KW
Cell compatibility
  • Compatible with battery pack up to 5 kg net weight
  • Testing Standards: IEC62133
Sample Holder
  • Multi vacuum chunks are built in for hold  battery pack sample
  • The heavy duty vacuum pump can be purchased with extra cost.
  • Max. sample size 100x100mm (3.93x3.93")  ( no limited at length )
Free Fall Height
  • 300 mm(11.8") to 1500mm(59") adjustable via electric motor at control panel
Chamber
  • Anti-explosion reinforced double layer steel chamber
    • Inside chamber:  made of 1 mm thickness cold rolled SS304  with tensile strength > 500 Mpa
    • Outside casing:    made of 3 mm thickness annealed A3 steel with Tensile strength > 400 Mpa
  • Explosion proof window: 382mm Lx332mm W (15"Lx13"W)
    • Double layer 5 mm thick anti-explosion glass with sandwiched shattering proof film
  • Max. Working Space in the chamber: L300mm x W250mm x H1000mm (11.8"x9.8"x39.3")
  • Build-in illuminator
  • Rolling wheels are installed on bottom easy transportation.
Control Unit
  • 6" color touch screen control panel for operating and setting parameters
  • Electric motor with worm gear reducer for raising and lowering the weight
  • In the case of electrical outage, weight will be lowered and locked in position automatically
  • Once parameter setup on the touch screen, a wireless hand-hold remote controller will operate machine within 10 meters distance for the safest operation
Venting

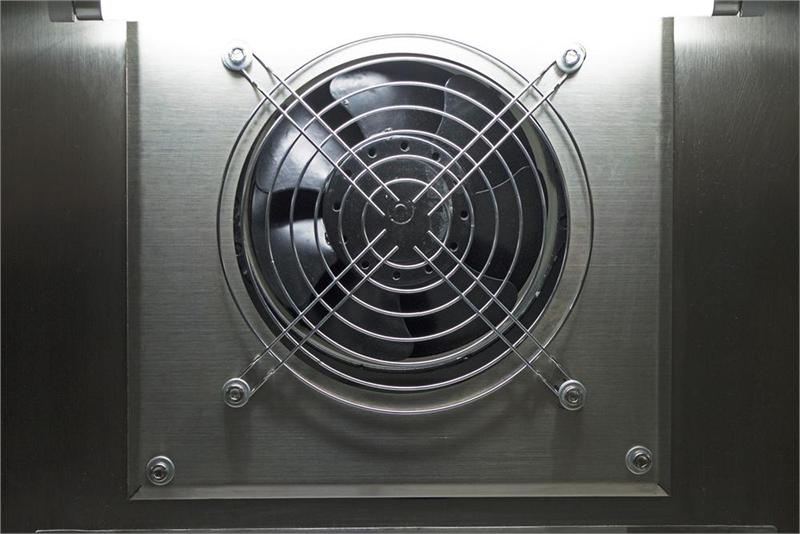

  • Venting port with high-quality exhaust fan is installed in back chamber which shall be connected to your venting system. (Ducting and exhaust system are not included)
  • Warning:  Must keep venting fan and exhaust system running during battery testing to avoid pressure build-up in the case of battery explosion.
Safety Door

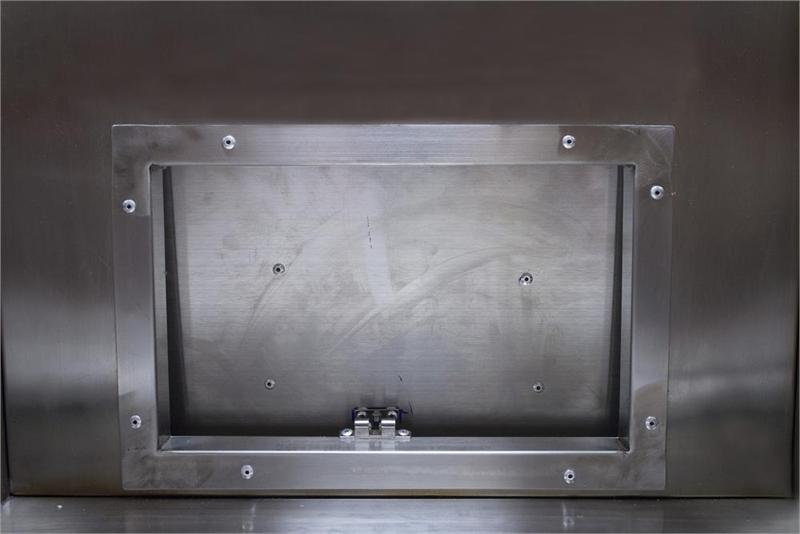

  • A pressure relief door is on the back of the chamber. In the case of a battery explosion, the door will "pop" to release the pressure inside of the chamber.
  • Attention: Do not block the Pressure Relief Door
Dimension (WxDxH) W800mm x D700mm x H1815mm (31.5"x27.5"x71.5")
Weight         772 Lb (350Kg)
Shipping Dimension         37"x36"x93", 942LB
Warranty         One-year limited manufacturer's warranty with lifetime support; extended warranty available upon request at additional cost.
Compliance
  • All electric components ( >24V) are UL or CSA certified.
  • The machine is ready to pass TUV(UL61010) or CSA certification at extra cost.
  • Please let us know if need UL or CSA in advance, so we can use the components accordingly.
