Advanced Hydraulic Driven Crushing Tester with Touch Screen & Remote Controller for Li-Ion Battery ( IEC 62133 & UN38.3 )

Your Price: RFQ
Please email for lead time

Product ID # 9764
Part Number:
BS-086

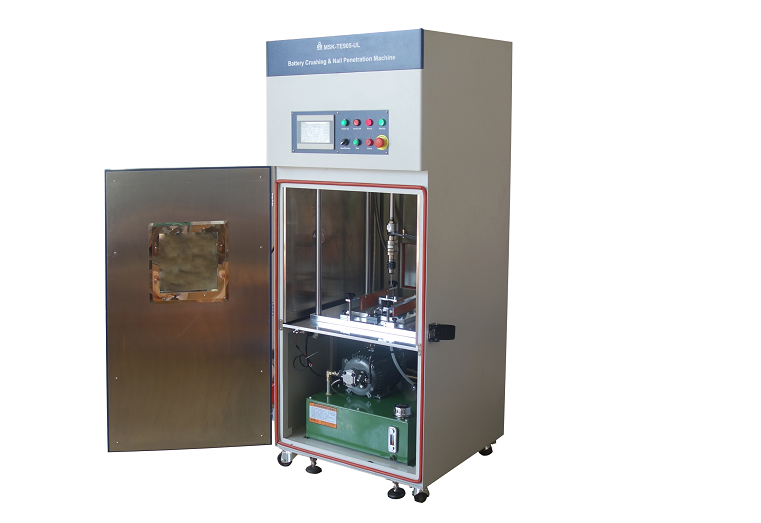

BS-086 is a UL/TUV standard advanced crushing test machine with color touch screen pannel and hand-held remote controller for the IEC 62133.8.3.5 and UN38.3 testing. An electric hydraulic pump allows the machine to achieve the required force for crushing the battery cells at variable speed, and also can control machine stop based on battery deformation and voltage drop.

SPECIFICATIONS
Applicability
  • Applicable to prismatic, pouch, coin/button cell and sylindrical cells less than 18.0mm in diameter
Power Requirements
  • 208V AC 3 phase , or customized 380V AC 3 phase
  • 3000W
Crushing Unit

  • Electric Hydraulic cylinder Ram 32mm dia.
  • Force 1000N ~15KN with Accuracy: ±1%
  • Pressing plate:  150 mm dia
  • Crushing speed: 1- 55 mm/s via hydraulic pump's valve
  • Meet UN38.3.4.6 standand for singe cell
Chamber Unit





  • Internal Chamber size (W x D x H): 750mm x 700mm x 700mm

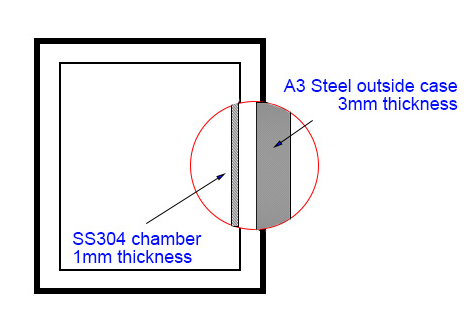

  • Double layer steel chamber for anti-explosion
    • Inside chamber: made of 1.5 mm thickness cold rolled SS304  with thensile strength > 500 Mpa
    • Outside casing: made of 1.5 mm thickness annealed A3 steel with Tensile strength > 400 Mpa

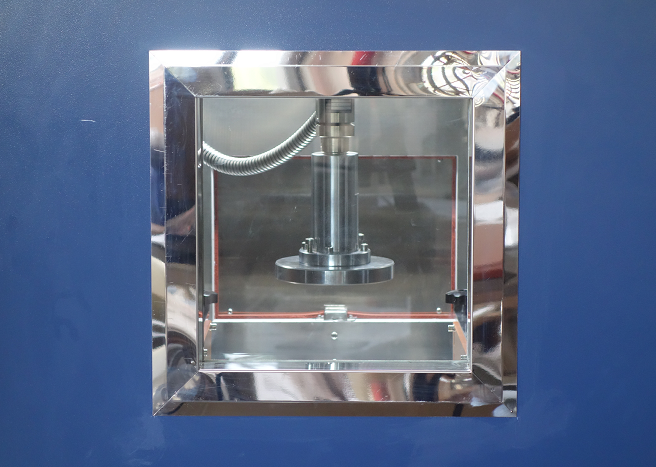

  • Explosion proof window: 280mm X 280mm

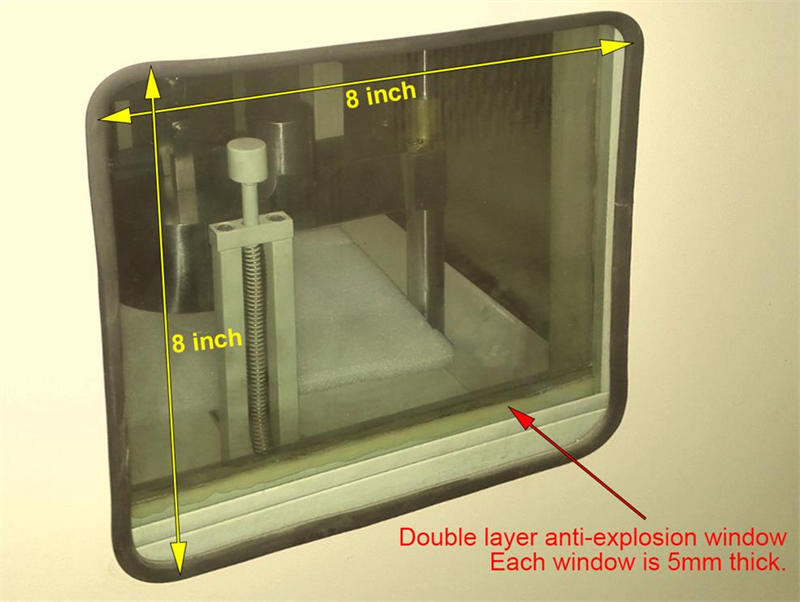

    • Double layer 5 mm thick anti-explosion glass with double sides anit explosion film to ensure broken glass can not flying out in the case of explosion
  • Laser crosshair for visualizing crushing center
  • Max.measuring space: 200mm X 200mm X 200mm
  • Max. Payload: 60Kg
  • Lighting is built on top
  • Four wheel is installed on bottom to make the box movable.



   Control Unit





  • 6" color touch screen control pannel for setting and display the parameters, such crushing force, dwell motion, time, crushing deformation and voltage change.
    • Deformation sensor accuracy: +/- 0.1mm
    • Voltage sensor accuracy: +/- 1.0 mV
  • Once parameter setup on the touch screen, a wireless hand-hold remote controller will operate machine within 10 meters distance for the most safe operatiion.
     Venting

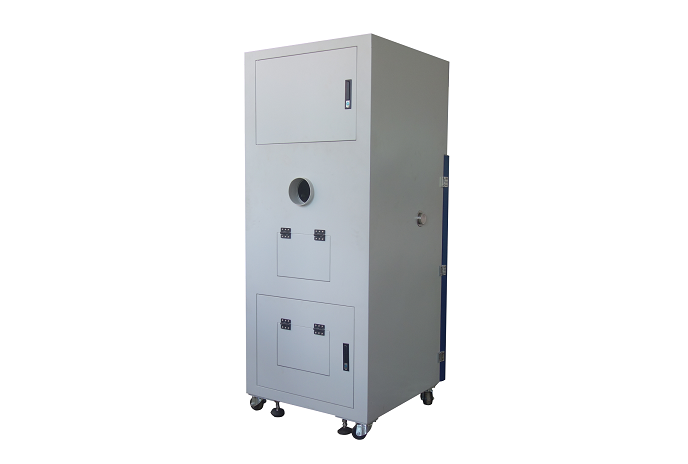

  • Two pressure release doors are built in the back of machine, the door will open in the case battery exploded to release pressure and smoking. (Pic 1)

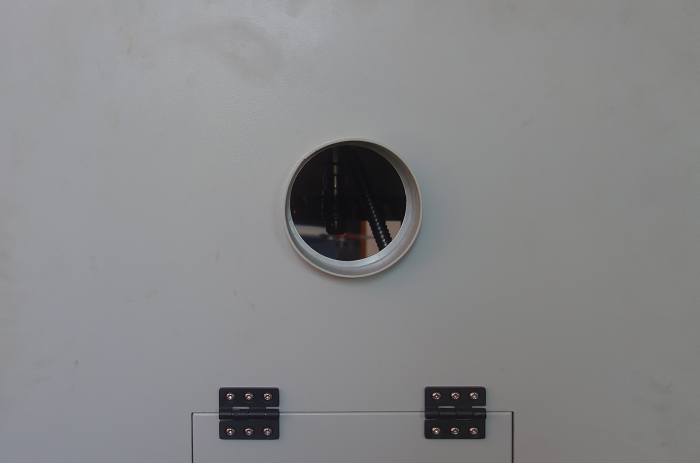

  • 100 mm dia venting port with metalic fan in the back of the chamber to connect an exhaust system at customer site.  (Connecting tube and  exhaust system are not included, Pic2 ), and keep venting gas from inside chamber.
  • Warning:  Must keep venting fan and exhaust system running during battery testing to ensure chamber pressure not build up in the case battery explode.



   Dimensions


 Fire System
  • Optional for fire protection BS-088
   Warranty  One year limited manufacturer's warranty with lifetime support; extended warranty available upon request at additional cost.
Shipping Weight 1 Pallet : 1524 LB, 41x37x88" for main unit
1 Pallet : 162 LB, 40x24x33" for accessories
  Compliance
  • All electric components ( >24V) are UL certified
  • If you need UL or CSA certificate for the equipment, there will be extra cost
Video Demo

Different between Product #9764 and #9589


Item
#9764 #9589
Monitor force 13kN±0.78kN Yes Yes
Monitor voltage drop by at least 100mV Yes Yes
Monitor deformed by 50% or more of thickness Yes Yes
UL/TUV ready Yes Yes
Support Nail Penetration No Yes
Price $$$ $$$$
