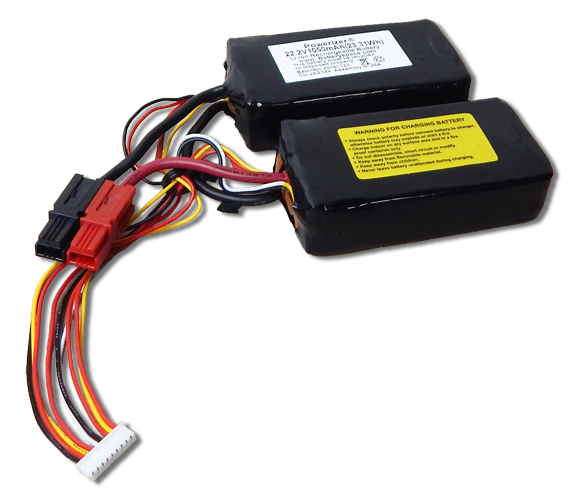

Polymer Li-Ion Battery: 22.2V 1050 mAh (23.31Wh, 10A rate)


Your Price: $95.00
In Stock

Product ID # 5544
Part Number:
CU-JAS349

Lead Time: 5 -10 Business Days
*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Battery
Voltage        Voltage: 22.2 V (working)   25.2V ( peak)  16.5V ( cut-off)
Capacity        1050 mAh
Protection
  • 1x NTC
  • No PCB: no over charge / over discharge / short circuit protection. Your device needs to have such protection. If not, please don't purchase.
Terminal
  • 6" 26AWG 9 pin JST EH
  • 2" 18AWG Anderson
Charging rate        <1050mA/1C
Max. Discharging Rate        1050mA/1C (Standard), 10500mA/10C (Max.)
Dimensions (LxWxH)        68x37x18mm for each block
NET Weight        6 oz
Charger
  • This is custom design battery pack. We do not have charger for this battery pack. Must to use balance charger to charge this battery.
Other options
Application
  • It has 9 pin JST.
Warning
  • Li-Ion Battery may explode if charging or discharging improperly. User must have knowledge on how to charge and discharge Li-Ion battery before making Li-Ion Battery Pack.
  • For safety warning please see the link here
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
