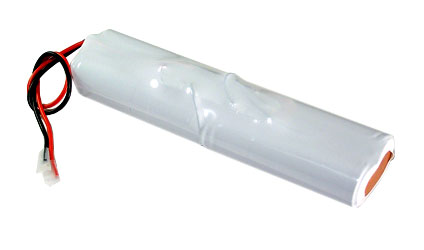

Custom LiFePO4 18650 Battery: 12.8V 1100 mAh (14.08Wh, 7A rate, 2x2E/E, LFP-18650-1100)


Your Price: From $54.30 to $59.30
Lead Time: 5 Business Days / Hazmat handling fee required*

Product Options

Connectors:

Features

*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Battery
Voltage       Nominal: 12.8V; Maximum Charge Voltage: 14.6V; Discharge Cut off: 8V
Capacity       1100 mAh
Cycle Life          > 1000 cycles (80% of initial capacity @ 0.2C rate, IEC Standard)
Protection
  • 1x PCB (7A limited) installed with the  battery pack and protects the battery from
    • Overcharge / Over discharge / Over drain / Short circuits
  • 1x 7A polyswitch
Terminal Options PR-CU-R462
  • 6" long 22AWG open end wires
    • Red = Positive
    • Black = Negative

CU-R462-V1
  • 5.5" 20AWG wires with Molex 0436450200, Crimps - Molex 0430300009

    Pin 1 =  Negative (BLACK)

    Pin 2 =  Positive (RED)

Charge Current       1.1A Standard, 3.3A Max
Max. Discharge Current       7 Amp limited by PCB
Dimensions(LxWxH)       133mm(5.3") x 38mm(1.5") x 19mm(0.7")
Weight        6.2 oz / 176g

Warnings

  • Li-Ion battery may explode if misused.  We are not responsible for any damages or losses caused by misuse (including but not limited to: mis-charging, mis-discharging, any changes of this battery pack, mis-assembling battery packs).
  • Always charge battery with attention.  Battery pack shall be placed in a fire-proof place to avoid any accidents
  • Please check battery polarity before plugging battery into light. Never make wrong polarity connection.
  • For safety warning please see the link here
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
