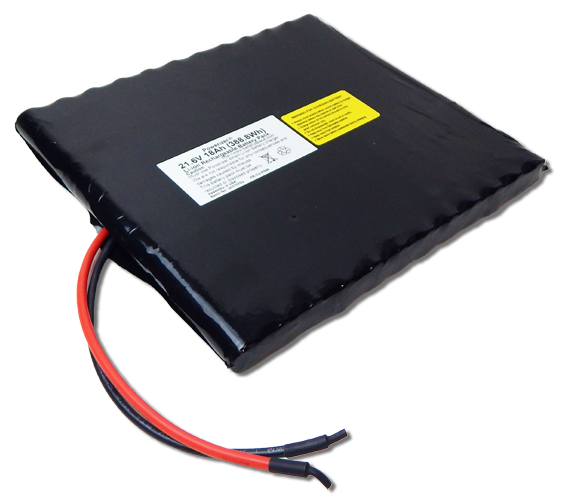

Custom Li-Ion 18650 Battery: 21.6V 18Ah (388.8Wh, 30A rate, INR18650HG2)


PR-CU-R566PR-CU-R566-V2
Your Price: Not for general sales
Lead Time: TBC

Product Options

Connectors:
*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Battery
  • 21.6V 18Ah Li-Ion Battery pack is made of 36 pcs LG INR18650HG2 Cell and packed by 6S6P in 3x12 flat configuration with battery holders.
  • 30A PCB locate at top of pack
  • Wrapped by Heavy Duty shrink tube
Voltage Nominal: 21.6V; Charge Cut off: 25.2V; Discharge Cut off: 15V
Capacity 18Ah
Protection
  •  1 x 30A PCM (PCM-L07S30-C29) installed with the battery pack to protect the pack from:
    • Over-charge / Over-discharge / Over drain / Short circuits
Terminal PR-CU-R566
10.25" 12AWG with Anderson PP75 Housing, 5915 series contact


PR-CU-R566-V1
Charge/discharge terminal: 6" 12 AWG open end wire

PR-CU-R566-V2
10.25" 12AWG with Anderson PP45 Housing, 1332 series contact

Charge Current Max. 30 Amp limited by PCB
Discharge Current Max. 30 Amp limited by PCB
Dimensions (LXWXH) TBC 246x204x27mm
Weight 3lb15oz (1780kg)
Operation Temperature
(Cell Surface Temperature)
  • Charge: - 5°C (23°F) ~  50 °C (122°F)
  • Discharge: - 20°C (-4°F) ~ 75 °C (167°F)
Storage Temperature
  • 1 month: -20°C (-4°F) ~ 60°C (140°F)
  • 3 month: -20°C (-4°F) ~ 45°C (113°F)
  • 1 year: -20°C (-4°F) ~ 20'°C (68°F)
Related
Warning
  • We are not responsible for any damages or losses caused by misuse (including but not limited to: misuse, any changes of this battery pack, mis-assembling battery packs)
  • Please never discharge the battery pack beyond its max. rating
  • For safety warning please see the link here
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
