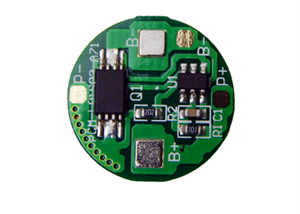

Protection Circuit Module (PCB) for 3.7V Li-ion (18650/18500) cell Battery (3.0A Limit) (#578)
Your Price: $3.00
In Stock

Product ID # 578
Part Number: PCB-S1A3

Add to a new shopping list

Quantity Discounts

QuantityAmount
5 to 20$2.91
21 to 50$2.85
51 to 100$2.79
101 or more$2.70
Protection Circuit Module Specifications  For 3.7V Li-ion/Li-Po Battery Pack
Model：PCB-S1A3
Over-charge protection voltage 4.25V±25mV
Over-discharge protection voltage 2.80V±50mV
Over-current detection current 5A±1A
Maximal continuous Discharging current 3A
Maximal Current consumption ≤10uA
Protection  circuitry  resistance ≤50mΩ
Dimension Dia: 16mm x 2.3mm (thick)
Weight 0.3 gram
Specification Download Specification

For other PCM/PCB, please check our PCM/PCB/BMS/CMB/UPS category

Warning

  • You must be professional in Lithium battery pack to buy the protection circuit board. Misusing may cause battery damage or explode. We are not responsible for any damage caused by user.
