Custom NiMH Battery Pack: 14.4V 10Ah (144Wh, 2x3E/E, D) with thermistor

Your Price: $149.50
In Stock

Product ID # 6386
Part Number:
PR-CU-R244

Lead Time: 5 Business Days!


Quantity Discounts

QuantityAmount
25 to 50$142.02
51 to 100$134.55
101 to 500$127.07
Battery
  • 14.4V 10000mAh battery pack is made by 12 pcs NiMH 10Ah  D size cell
  • Make in 2 x 6 end to end configuration
  • Wrapped by heavy duty shrink tube
Voltage      14.4 V ( working )    17.4 V ( peak)
Capacity      10 Ah   or  144 Wh
Charging Rate      Standard 1A     Max. 2A
Discharging Rate

     Max. rate for short time: 50A

 Protection
  • NTC 10K with open end wires

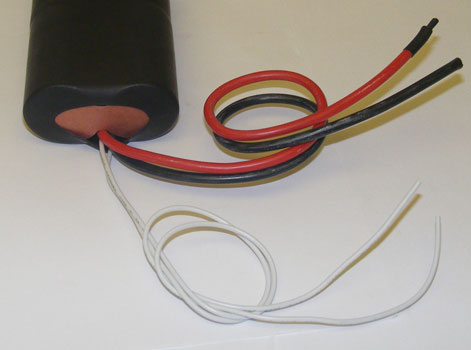

 Pre-wired
  • 12" 12AWG wiresfor charge/discharge terminal
  • Black = Negative
  • Red = Positive
  • 2x WHITE 12" 20 AWG wires from 10K NTC
 Dimension (LxWxH)  368mm(14.5) x 70mm(2.8") x 38mm(1.5")
 Net Weight       2040 grams (4.0lbs 8.0 Oz)
Applications
  • custom
 Cautions
  • Please don't discharging the battery pack below 10V  ( 1.0 V / cell)  Deep discharging may damage NiMH battery pack.
  • Charging battery immediately every time it is discharged. Never storage the battery pack at below 12V.
