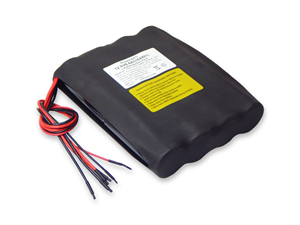

LiFePO4 26650 Battery: 12.8V 6.6Ah (84.5Wh 7A rate, 2X4S/S, Flat, 26650-3300) - UN38.3 Passed

CU-K157
Your Price: $118.95
In Stock

Product ID # 5024
Part Number: CU-K157

Lead Time: 5 Business Days
Add to a new shopping list

Quantity Discounts

QuantityAmount
5 to 20$115.38
21 to 50$113.00
51 to 100$110.62
101 or more$107.05

Features

Battery
  • Made of 8 pcs high quality LiFePO4 3300 mAh cylindrical cells  in 4S2P
  • Wrapped by double layers of PVC
    • Black Heavy duty PVC --- External PVC
    • Black thin Plastic PVC --- Internal PVC
Voltage Norminal Voltage: 12.8V; Maximum Charge Voltage: 14.6V;  Discharge Cut off Voltage: 8V
Capacity 6.6 Ah
Protection
Terminal Total: 6 wires coming out of the battery pack:
    •
  • Charge Terminal      :  8" 18AWG open end wire ( black and red )
  • Discharge Terminal  :  8" 18AWG open end wire ( black and red )
  • Fuel gauge use       :  8"  26AWG open end wire( black and red )
Charge Current Standard Charge: 0.2C / 1320mA; Maximum Charge: 3400mA
Discharge Current Maximum Discharge:  7000mA limited by PCB
Dimensions(LxWxH) 137x110x28mm
Weight 880 grams (2.0 Lb)
Temperature Charge: 0° to 45°C; Discharge: -20°C to 60°C
Storage: -10°C to 35°C
