Universal Smart Charger: 0-103VDC, 0-10A for Any Li-Ion Battery Pack up to 24 cells in series
|
|
Your Price: Call for Price & Lead Time
In Stock
Product ID # 5058
Part Number: CH-LI-Master100.8V
|
Features
- 0-103VDC adjustable
- 0 - 10A Maxadjustable
- CC (Constant Current) /CV (Constant Voltage) Mode
- Overload Protection
- Low ripple noise,
- High efficient
- Color four LED Digital Panel Meters Voltages and Current Display.
- Can be used as a smart charger to recharge Li-Ion and LiFePO4 battery pack up to 24 cells in series
- Dimension (LxWxH): 395mm(15.6") x 325mm(12.8") x 145mm(5.7")
- Weight: 11.9kg (26.2 lbs)
|
Specification
| Input Power |
AC 110V/230VAC, 50+/- 10Hz, USAAC plug |
| Output Power (Adjustable) |
DC 0 -105V Max, 0 - 10A Max |
| Constant Voltage Operation |
- PowerSource efficiency: 0.2%+20mV
- Load efficiency: 0.2%+20mV
- Ripple and noise: 0.3%+30mV(rms)
|
| Constant Current Operation |
Ripple and noise: 0.3%+30mA(rms) |

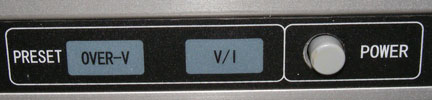

| Over Supply voltage protection |
Automatically shut off and alarm alert when DC voltage supply higher than setting voltage. |
| Operation temperature |
<40'C (104F) |
| Meter: Voltage/ Current display |
4 Digits panel meter: Accuracy: (+/- 1% of rdg +2 digits) |
| Output terminal |
- Charge / Discharge terminal: Binding Post
- excluded Barrel Lug terminal size: 0.6"(14mm) L x 0.3" (8mm) W x 0.04"(1mm) H
|
| Binding Post size |
- 0.8"(19mm) Dia x 1.2"(30 mm) L
- Red Binding Post = Positive
- Black Binding Post = Negative
|
| User Manual |
 |
Applications
- This DC Power supply can be used as a smartcharger for LiCo battery pack upto 24 cell inseries (88.8V) and LiFePO4 battery packup to 25 cells in series. You must set correct cut-off voltage before charging according to battery pack's chemistry and voltage to ensure safe charging.
- For Li-Ion battery pack, cut-off voltage setting shall be 4.2V x Cell's number in series , for example, 24 cells / 88.8V battery pack, cut-off voltage is 100.8V
- For LiFePO4 battery pack, cut-off voltage setting shall be 3.8V x Cell's number in series , for example, 24 cells / 76.8V battery pack, cut-off voltage is 91.2V
|
Warnings
- 8 hrs maximum continous charge. Please restart the charger after 8 hrs use.
- Please let 15 minutes warm up engine before charge.
- For > 10 cells battery pack. Must locate diode on charger charging wire for prevent sparking during charge
- For AWG wire gauge, Please click here for American Wire Gauge table and AWG Electrical Current Load Limits table.
- Must use proper Barrel Lug / AWG wire gauge to match up the max discharge current (10A)
- Must set up constant current equal or less than specified charging current in cell
- Higher charging voltage may cause Li-Ion battery exploding or fire
- Wrong polarity will damage the DC Power Supply, and Batteryspace are not responsible for the damage or losses caused by misuse
- California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
|
|
