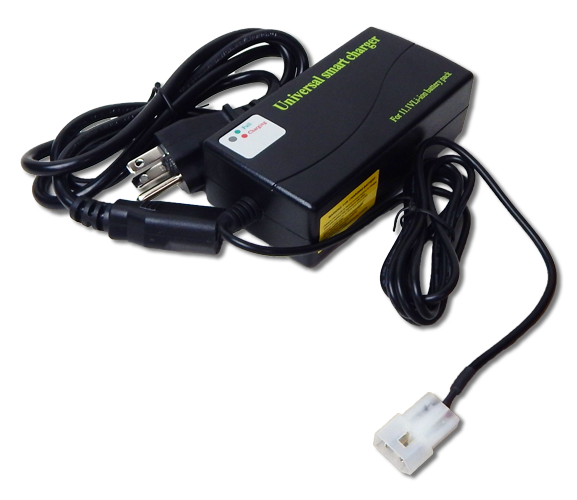

Smart Charger (1.8A) for 11.1V Li-ion/Polymer Rechargeable Battery Pack - CE -

11.1V is an UL listed smart battery charger designed to charge 11.1V Li-Ion/Polymer battery.

Input

• Voltage: 100 -240VAC
• AC power plug type: USA

• Red - Charging
• Green - Fully charged
• Dim Green/no LED - you are trying to charge a fully charged battery.
  • Solution - discharge/drain the battery first and recharge again.

• Click here to download specification
• Click here to download user manual

• CH-L1118 (UL): 4' 8" long 5.5 x 2.1 x 10mm male barrel plug
• Inside barrel = positive (+), Outside barrel = negative (-)
• Included one Connector Adaptor: from 5.5mm x 2.1mm female Barrel jack to Clips
• You can order other kinds of adapter cable here.
• CU-CH108: 4' 2"long Anderson connector
• Connector dimension(LxWxH): 0.97" (24.6mm) x 0.31" (7.9mm) x 0.31" (7.9mm)
• CU-J1056: 5.5x2.5x12mm Male Plug (AD-5525M-12) (reverse polarity)
• Must use 5.5x2.5x12mm Male Plug

• Outside barrel is +
• Inside barrel is -
• CU-K0106: Female Trail Connector

• CH-L1118-V1: 6" wire Cigarette male plug
• CH-L1118-V2: 5.5 mm x 2.5 mm Barrel Female Jack

• CH-L1118-V3: 5.5 mm x 2.1 mm Barrel Female Jack
• CH-L1118-V4: Molex 0003092022 x 1; Pin: 0002092103 x2
• Pin 1: Positive; Pin 2: Negative
• CH-L1118-V5: 5.5x2.5x12mm Male Plug(AD-5525M-12)

• Must use 5.5x2.5x12mm Male Plug
• Outside barrel is -
• Inside barrel is +
• CH-L1118-V6: male Deans connector.
• CH-L1118-V7: 5.5x2.5x10mm Male Plug(AD-5525M-10)
• Inside barrel = positive (+)
• Outside barrel = negative (-)
• CH-L1118-V8: Bulgin PX0410/02S/5560 x 1; Pin: SA3349/1 x 2; see drawing

•

• Check battery polarity before connecting to charger. We are NOT liable for any damage due to wrong polarity!
• This is for 11.1V Li-Ion/Polymer battery with capacity  >2Ah
• Indoor use only!
• Do NOT open the cover as it will void the warranty
• One year warranty
