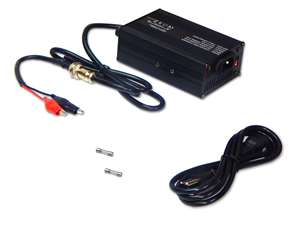

Smart Charger (6A) for 6S 21.6V/22.2V Li-ion/Polymer Rechargeable Battery Pack - CE Listed

Your Price: $59.95
In Stock

Product ID # 6432
Part Number:
CH-L2206



Features

Feature

  • Designed for 6S Li ion rechargeable battery with capacity ≥ 6Ah
  • For Battery Voltage: 21.6V - 22.2V
  • CC-CV Charging mode
  • USA AC Plug
  • Input Power:
    • 100Vac-120Vac, Maximum: 3Amp or
    • 220Vac-240Vac, Maximum: 1.5Amp
  • Output Power: 25.2V DC±0.2V, Maximum: 6Amp

Safety Protection

  • Output short circuit protection:
    • Can reset the charger by unplug AC power cable.
  • Over temperature protection:
    • When cooling down, the charger will auto recover.
  • Low voltage protection:
    • If battery’s voltage is <15.12V, the charger will not charge the battery
  • Over voltage protection:
    • If the output voltage is >25.2V±0.2V, the charger will stop working
  • Wrong polarity protection

LED

  • Solid Green: Connect to AC outlet, without connect to battery
  • Solid Red: Charging
  • Solid Green: Fully charged/trickle charge

Connector/Cable

  • 4 pin female cannon on the charger side
  • 4 pin male cannon connector to clips cable come with the charger

Temperature

  • Working Temperature: -20°C to 45°C
  • Storage Temperature: -20°C to 85°C

Dimension

LxWxH: 6.1x3.5x2 inch (155x90x51mm)

Weight

2LB 3oz

Please download the Specification here

Warnings

  • Only charge Li-Ion battery pack with norminal voltage 22.2V ( or 21.6V, 6 cells in series ). Don't use the charger for lower voltage battery pack, which may cause battery explode.
  • Don't use the charger for lower capacity (<6Ah) Li-Ion battery pack.
  • We are not responsible for any damage caused by misuse.
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
