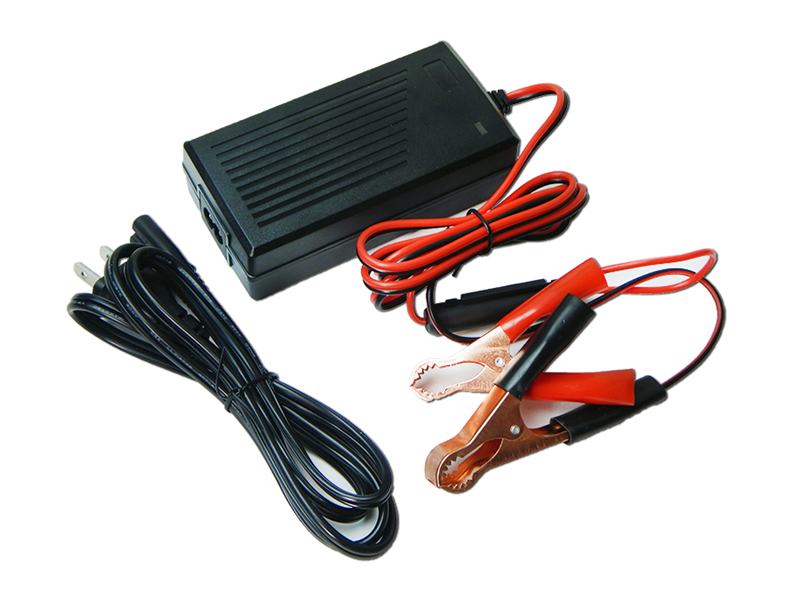

Smart Charger (5A) for 3.7V Li-ion/Polymer Rechargeable Battery Pack -

Your Price: $29.95

Product Options

Connector:


General
  • For 3.7V Li-Ion Battery Pack with capacity > 5000mAh
  • Indoor use
  • For avoid electronic shock, please don't remove the cover
Input
  • Voltage: 100-240Vac 50/60Hz, US Plug
  • Current: 0.5A Maximum
Output
  • Two stages: CC--CV mode
    • CC mode:Constant 2A, voltage range: 2.5-3.8V
    • CV mode: 3.8-4.2Vdc, 5A drop to 0.75A
  • Voltage: 4.2Vdc(4.2-4.5Vdc)
  • Current: 5A(4.5-5A)
  • Power: Max. 21 Watts
  • Cut-off Current: 0.75A(0.5-1.0A)
  • Safety Protection: Over-load, Over-current, Over-voltage, short circuit
  • Efficiency: ≥76 %
Temperature
  • Operating Temperature: -10 to 40°C
  • Storage Temperature: -20 to 85°C
LED Indicator
  • No Load: Green
  • Charging: Red
  • Full Charge: Red turns to Green
Weight
  • 9 oz
Dimention
  • 117x62x35 mm
Certification CE FCC UL KC SAA PSE ROHS
Warning California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
