Smart Charger (15A) for 25.6V ( 8 cells ) LiFePO4 Battery Pack - CH-LF24V15-PFC
|
|
In Stock
Product ID # 5021
Part Number: CH-LF24V15-PFC
Quantity Discounts
| Quantity | Amount |
| 5 to 20 | $259.96 |
| 21 to 50 | $254.60 |
| 51 to 100 | $249.24 |
| 101 or more | $241.20 |
|
|
Features
| Feature |
- This charger is power factor corrected, which exhibit high efficiency
- Has CAN communication or digital alarm output.
- Interfaces with BMS Management System via CAN Communication or 2 x 12V digital alarm output .
- Suitable for 8-cell pack (connected in series) .
- Fan cooled .
- Power Factor: > 0.75
- Efficiency: > 72%
- For Battery capacity ≥40Ah
|
| Input |
96 to 260 VAC, 40~60Hz |
| Output |
28.4V / 15A DC |
| Connector |
4' long 8AWG wire with SB50A connector |
| Protection |
- Overload protection
- Over-voltage protection
- Over-heating protection
- Short circuit protection
- Reverse polarity protection
|
| LED Indicator |
- Initial: All 6 LED indicator "Flashing" for 5 sec

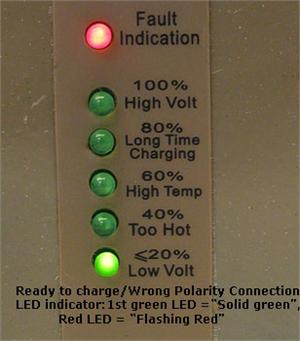

- Ready to charge/ Wrong polarity connection: 1st green LED = Solid green, Red LED = "Flashing Red"
- Perform Charging/ Correct Polarity connection: 1st green LED = "Flashing Green", Red LED = "Off" (Cooling Fan turn on)
- 20% full charge: 1st green LED = "Solid Green", 2nd green LED = "Flashing Green", Red LED = "Off"
- 40% full charge: 1st & 2nd green LED = "Solid Green", 3rd green LED = "Flashing Green", Red LED = "Off"
- 60% full charge: 1st & 2nd & 3rd green LED = "Solid Green" , 4th green LED = "Flashing Green", Red LED = "Off"
- 80% full charge: 1st & 2nd & 3rd & 4th green LED = "Solid Green", 5th green LED = "Flashing Green", Red LED = "Off"
- 100% full charge: 1st & 2nd & 3rd & 4th &5th green LED = "Solid Green",Red LED = "Off"
|
| Dimension |
214mm(8.5") x 120mm(4.7") x 65mm(2.6") |
| Weight |
3.0 lbs 8.8Oz (1610 grams) |
Please download the Specification here
Warnings
- Charge 25.6V LiFePO4 rechargeable battery >= 40Ah only
- Do not expose the product to rain or humidity to prevent from electric shock
- It is normal if the product gets slightly hot while in use
- Keep the product out of the reach of children
- Do not open the charger and touch any part of the product to prevent from electric shock
- Wrong polarity will damage the charger, and Batteryspace.com is not responsible for the damage or losses caused by misuse
- Please plug in AC power first, then connect the battery to the charger, otherwise, there is no output from the charger.
- California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
|
|
