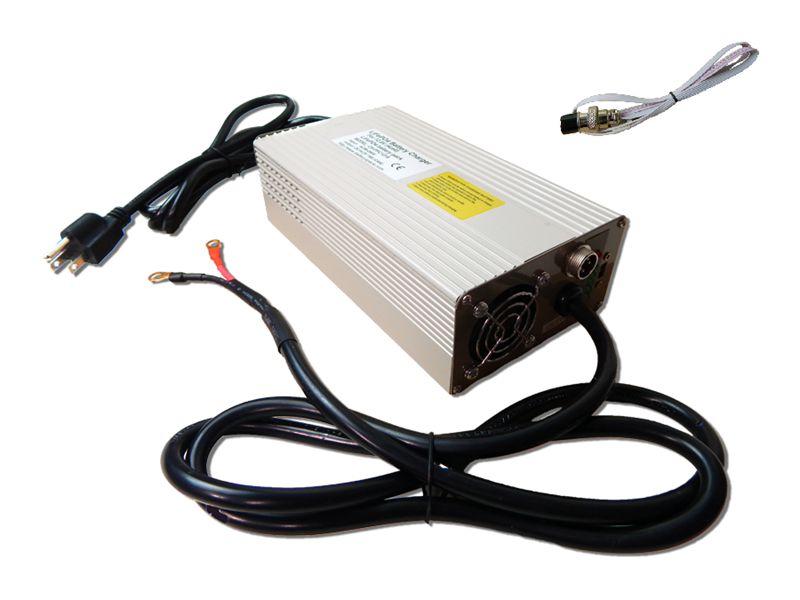

Smart Charger (15A) for 12.8V LiFePO4 Battery Pack - CH-PFC1215*

CH-PFC1215: Anderson SB50
CH-PFC1215: Anderson SB50CU-CH115: Anderson CN-SA3.CH-PFC1215-V1: 20A Ring Terminal Option 1: Anderson SB50.Option 1: Anderson SB50.
Your Price: From $193.00 to $203.00

Product Options

Terminals:

Features

Feature
  • This charger is power factor corrected, which exhibit high efficiency
  • Has CAN communication or digital alarm output.
  • Interfaces with BMS Management System via CAN Communication or 12V digital alarm output .
  • Suitable for 4-cell pack (connected in series) .
  • Fan cooled .
  • Power Factor: > 99%
  • Efficiency: > 92%
  • For Battery capacity ≥40Ah
Input 96 to 260 VAC
Standard Max. Output 14.2V ( 3.55V/cell ) / 15A DC
Protection
  • It provides protections against
    • Overload
    • Over-voltage
    • Over-heating
    • Short circuit
    • Reverse polarity
Dimension 218mm(8.6") x 120mm(4.8") x 65mm(2.6")
Weight 5 lbs (1496 grams)
Warning California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings

Connector Options

Please download the Specification here
