Short Circuit Testing System with Constant Resistance Control Up to 240A ( UN38.3.4.5)

Your Price: RFQ
Please email for lead time

Product ID # 6551
Part Number:
BS-112

Lead Time: 5 Business Day

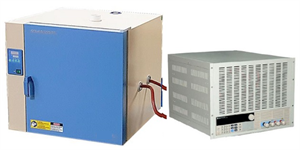

BS-112 Short Circuit Test system is designed for testing rechargeable batteries under short circuit conditions with current draw <240A up to 150V. It has a 3.6KW digital electronic load which can set constant resistance per IEC62133 reqirement.

Specification

Advanced Features
  • Copper made high current contactors ensures low internal resistance and fast response
  • Digital Electronic load with automatic constant resistance control
Current Range
  • 0-240 Max  upto 120V DC
Working Voltage & Power
  • Single Phase 208~240VAC±10%, 50/60Hz
  • 3.6 KW max.
Power Control Console

  • Six high-speed operation modes: CC,CR,CV,CW,CC+CV,CR+CW
  • Over current, over voltage, over power, overheat, polarity reversed protection
  • High-luminance VFD screen with two lines& four channels display
  • Intelligent fan system fan will be automatically initiated according to the temperature
  • Soft start time setting, carrying the power supplier according to the voltage value set
  • Battery testing and short-circuit function
  • Available of dynamic testing and rising edge and falling edge setting
  • Supporting external trigger input and output
  • External current waveform monitor terminal
  • Supporting remote voltage compensation and multi-data storage
  • Power-on-self-test, software calibration, and standard rack mount
  • Communication mode: GPIB/RS232/RS485/USB.
Operation Environment
  • Temperature: 25±3℃; RH: 30~90RH(%)
  • Avoid electromagnetic interference
Testing Chamber
  • NRTL certified Testing Chamber is included with dimension of 18"x16"x18", 80 L Capacity
  • Calibrated at 50°C   and 200°C max capability
Compliance All Electric parts are NRTL Certified and ready to pass UL/MET/ETL/CSA/TUV certifications at extra cost.
Warranty One year limited manufacturer's warranty with lifetime support; extended warranty available upon request at additional cost.
Dimensions & Weight W 530mm x D 400 mm x H 935mm; 46kg
