Protection Circuit Module (PCM) with Equilibrium Function for 3S Li-Ion Battery Pack at 8A limit (#4160)
|
In Stock
Product ID # 4160 Part Number: PCM-LI3S8A
|

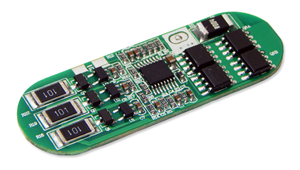

This protection circuit is specially designed for 3S Li-Ion Battery pack with 8A discharging rate. Different than normal PCB, it provides equilibrium function after battery pack is fully charged. PCM will detect each cell's voltage and trim higher voltage down until other cells reach the same voltage level. Therefore, it helps Li-Ion cells have longer service life.
Protection Circuit Module Specifications For 3S Li-ion/Li-Po Battery Pack |
Model:PCM-LI3S8A |
Charging Voltage |
12.6V |
Over-charge protection voltage |
4.25±0.025V |
Over-discharge protection voltage |
2.50±0.08V |
Over-current detection protection |
20±5A |
Maximal continuous Charging current |
8A |
Maximal continuous Discharging current |
8A |
Maximal Current consumption |
≤20uA |
Balance Voltage for single cell |
4.20±0.025V |
Balance Current for single cell |
42mA±5mA |
Protection circuitry resistance (B- TO P-) |
≤20mΩ |
Dimension (LxWxT) |
53.3mm x 17.2mm x 5mm (2.1"x0.7"x0.2") |
Weight |
3 grams |
P+/P- |
P+ = Charge+ / Discharge + P- = Charge- / Discharge -
|
Specification |
Download Specification |
For other PCM/PCB, please check our PCM/PCB/BMS/CMB/UPS category Warning
- If you want to use this protection circuit board for a battery that is less than the rated drain, you must add additional protection device to protect the battery itself. Such as: proper rated polyswitch.
- To achieve balance, each cell in battery pack must has equal voltage within tolerance. When charger LED turn Green, allow 30 minutes for pack to balance before use.
- You must be professional in Lithium battery pack to buy the protection circuit board. Misusing may cause battery damage or explode. We are not responsible for any damage caused by user.
|
