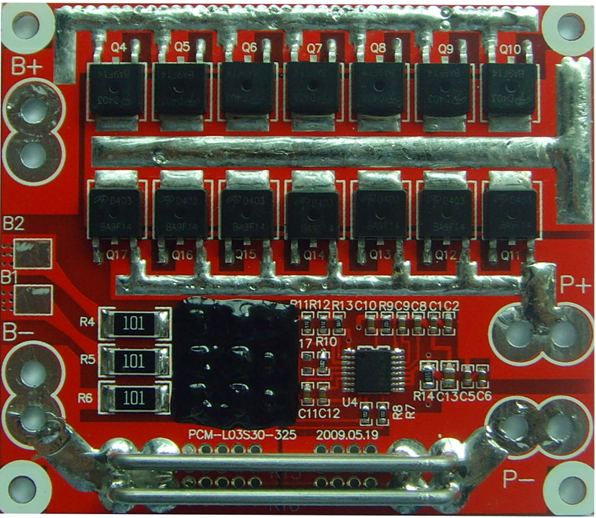

Protection Circuit Module (PCB) for 11.1V Li-Ion Battery Pack at 30A limit (#9203)
|
|
Non Inventory Item, Minimum 5qty, Lead Time: 4 weeks
Product ID # 9203
Part Number: PCM-LI11.1V30A
|
This protection circuit is specially designed for 11.1V Li-Ion Battery pack with 30A discharging rate. PCM will detect each cell's voltage and trim higher voltage down until other cells reach the same voltage level. Therefore, it helps Li-Ion cells have longer service life.
| Protection Circuit Module Specifications For 11.1V Li-ion/Li-Po Battery Pack |
| Model：PCM-LI11.1V30A |
| Over-charge protection voltage |
4.35±0.025V per cell |
| Over-discharge protection voltage |
2.40±0.08V per cell |
| Over-current protection |
100±20A |
| Maximal continuous Discharging current |
30A |
| Maximal Current consumption for single cell |
≤50uA |
| Protection circuitry resistance (B- TO P-) |
≤30mΩ |
| Dimension |
73mmx63mmx5 mm |
| Weight |
38 grams |
| P+/P- |
P+ = Charge+ / Discharge +
P- = Charge- / Discharge -
|
| Specification |
Download Specification |
For other PCM/PCB, please check our PCM/PCB/BMS/CMB/UPS category
Warning
- If you want to use this protection circuit board for a battery that is less than the rated drain, you must add additional protection device to protect the battery itself. Such as: proper rated polyswitch.
- To achieve balance, each cell in battery pack must has equal voltage within tolerance. When charger LED turn Green, allow 30 minutes for pack to balance before use.
- You must be professional in Lithium battery pack to buy the protection circuit board. Misusing may cause battery damage or explode. We are not responsible for any damage caused by user.
|
