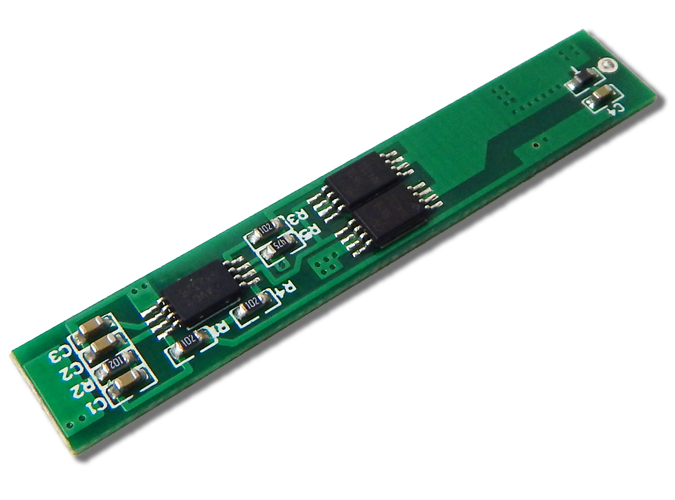

Protection Circuit Module (PCB) for 7.2V/7.4V Li-Ion Battery Pack (5A Limit) with 10K NTC (#9358)
Your Price: $4.00
In Stock

Product ID # 9358
Part Number: PCB-S2A8K10

Add to a new shopping list

Quantity Discounts

QuantityAmount
5 to 20$3.88
21 to 50$3.80
51 to 100$3.72
101 or more$3.60
Protection Circuit Module Specifications  For 7.4V Li-ion/Li-Po Battery  Pack
Model：PCB-S2A8K10
Over-charge protection voltage 4.350 ± 0.025V
Over-discharge protection voltage 2.30 ± 0.080V
Over-current protection 14～19A
Maximal continuous Discharging current 5A
Maximal Current consumption ≤20uA
Protection  circuitry  resistance ≤50mΩ
Dimension 48mm(1.9") x 8mm(0.3")x 2.5mm(0.1")
Weight 0.9 gram
Specification Download Specification

For other PCM/PCB, please check our PCM/PCB/BMS/CMB/UPS category

Warning

  • If you want to use this protection circuit board for a battery that is less than the rated drain, you must add additional protection device to protect the battery itself. Such as: proper rated polyswitch.
  • You must be professional in Lithium battery pack to buy the protection circuit board. Misusing may cause battery damage or explode. We are not responsible for any damage caused by user.
