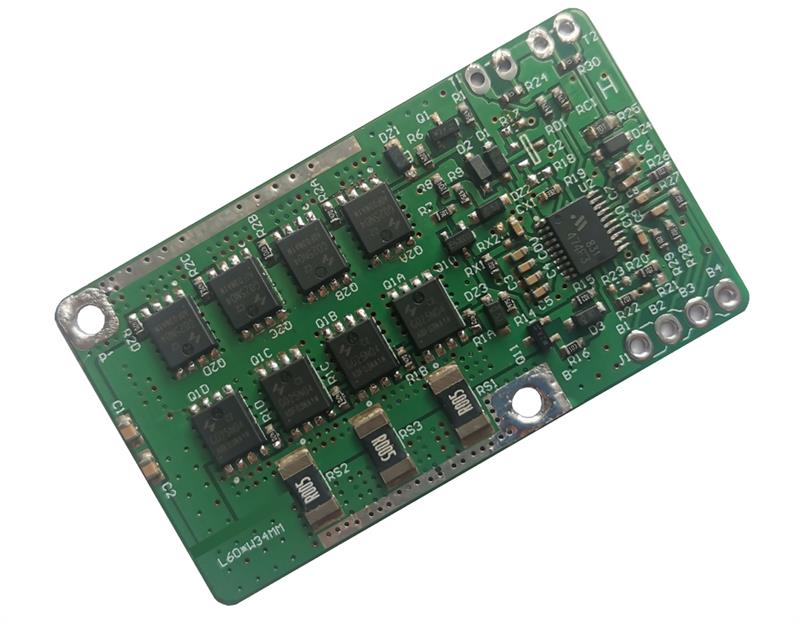

Protection Circuit Module (PCB) for 3S Li-Ion Battery Pack at 20A limit (#1399)

Protection Circuit Board Specifications  For 3S 10.8/11.1V Li-ion/Li-po Battery Pack
Model:PCB-LI3S20A
No.	Test   item		Criterion
1	Voltage	Charging voltage	DC: 12.6V CC/CV (4.2V/1cell)
		Balance voltage for single cell	N/A
2	Current	Balance current for single cell	N/A
		Current consumption for single cell	≤150μA
		Maximal continuous Charging current	20A
		Maximal continuous discharging current	20A
3	Over charge Protection (single cell)	Over charge detection voltage	4.25±0.05V
		Over charge detection delay time	0.5S-2S
		Over charge release voltage	4.10±0.1V
4	Over discharge protection (single cell)	Over discharge detection voltage	2.50±0.1V
		Over discharge detection delay time	10-300mS
		Over discharge release voltage	3.0±0.1V
5	Over current protection	Over current detection voltage	N/A
		Over current detection current	50±10A
		Detection delay time	50ms-300ms
		Release condition	Cut load
6	Short protection	Detection condition	Exterior short circuit
		Detection delay time	200-800us
		Release condition	Cut load
7	Resistance	Protection  circuitry (B- TO P-)	≤20mΩ
8	Temperature	Operating Temperature Range	-40 to +70℃
		Storage Temperature Range	-40 to +125℃
9	Weight
10	Dimenstion	LxWxT	60 x 34 x2 mm
11	Connection Drawing

 For other PCM/PCB, please check our PCM/PCB/BMS/CMB/UPS category

Warning

• If you want to use this protection circuit board for a battery that is less than the rated drain, you must add additional protection device to protect the battery itself. Such as: proper rated polyswitch.
• You must be professional in Lithium battery pack to buy the protection circuit board. Misusing may cause battery damage or explode. We are not responsible for any damage caused by user.
