Polymer Li-Ion Battery: 3.7V 5Ah ( 18.5Wh 5A rate) - UN38.3 Passed

Your Price: From $27.95 to $31.95
Lead Time: 5 Business Days

Product Options

Terminals:


Battery
  • 3.7V 5Ah Li-Ion Battery pack is made of 3.7V 5Ah (PL896474) cell with Built in Protection IC (PCB) to avoid battery over charge and over discharge
Voltage      Voltage: 3.6V (working)   4.2V ( peak)  2.75V(cut-off)
Capacity      5000 mAh, 18.5 Wh
Energy Density      185Wh/kg
Protection
  • 1x  PCB (5A) installed with the  battery pack and protects the battery from
    • Overcharge       (>4.2V)
    • Overdischarge  ( <2.5 V)
    • Over drain ( >6.0 Amp)
    • Short circuits
Terminals
  • PL896474-WR: 7.5"long 18 AWG .( Black wire:negative, Red wire: Positive)

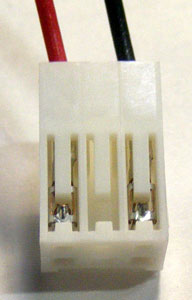

  • CU-J738: 7.5" 22AWG with TE connector
    • (Housing: digikey P/N: A99614-ND, Crimp: digikey P/N: A99620-ND)
    • Pin 1: Black, Pin 3: Red
    •
  • PR-CU-R329: 1.5" 24 AWG JST PH connector, Pin 1 (+)
    •
  • PL896474-WR-V1:
    • Battery pack don't need to wrapped by PVC.
    • 7.5"long 18AWG silicon wire provided from customer.( Black wire:negative, Red wire: Positive).
    • Wires exit to the side of the battery instead from the middle of the protection PCB.
Max. Discharging Rate       5 Amp limited by PCB
Max Charging Rate       2.5Amp
Dimensions (LxWxH)

      78mm (3.1")x 65mm (2.6") x 9.5mm (0.4")

Weight       4 oz (101 grams)
Related Products
Warning
  • Li-Ion battery may be exploded if mis-using.  We are not responsible for any damages or losses caused by misuse.
  • Always charge battery with attention. Battery pack shall be placed on a fire-proof place to avoid any accident .
  • Please don't use the battery modules to make series connection or parallel connectionwith more than 2 packs, otherwise battery service life may be reduced.
  • For safety warning please see the link here

Related Products

Product Reviews

(2 Ratings, 1 Review) Average Rating:
ratingratingratingratingrating
ratingratingratingratingrating
Works great
Sean Lorenzen (Mount Horeb, WI) 6/22/2017 12:21 AM
Using it for remote fan and BLE device. Very acceptable for the task. The JST connector option is a bit short so plan for that in your design and you should be fine.
---------------------------
