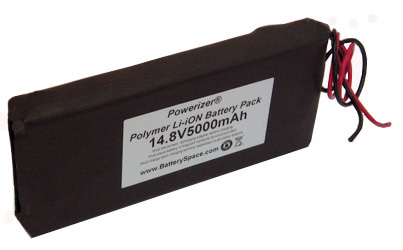

Polymer Li-Ion Battery: 14.8V 5Ah (2Rx2C, 74Wh, 7A rate, 896474-2C) (6.0)
|
|
In Stock
Product ID # 4418
Part Number: PL-896474-4S-WR2
Lead Time: 5 Business Days!
Quantity Discounts
| Quantity | Amount |
| 5 to 20 | $102.77 |
| 21 to 50 | $100.65 |
| 51 to 100 | $98.53 |
| 101 or more | $95.35 |
|
|
| *Important Shipping Regulation |
This pack is for testing (prototype) only. It has not been UN38.3 tested yet. Read more... |
| Packing |
-
-
Packed in 2Row x 2Column configuration. (2 pcs end to end on the bottom, 2 pcs end to on the top)
-
PCM located on the top 162x 67mm plane
-
The battery pack is Wrapped by PVC shrink tube
-
-
This Fire Retardant Bag (Li-Ion Safer Bag) is intended to reduce the chance of damage in the event of catching fire.
-
Must locate & seal the battery pack in the bag while charging / leaving without any attention
|
| Voltage |
14.8V (working) 16.8V ( peak) 11.0V ( cut-off) |
| Capacity |
5000 mAh min. (74 wh) |
| Protection |
- One PCM with balance function(10A max.) is installed with the battery pack to protect battery from
- Over-charging beyond 4.25V/cell
- Over-discharging below 2.75V/cell
- Over-drain beyond 10A
- Balance battery's voltage within 4.25V +/-0.2V during charging
- One 7Amp polyswitch installed to limit max. discharging current at 7 A
|
| Pre-wired |
6" length 18 AWG wires without connector |
| Max. Discharging Rate |
7 Amplimited by polyswitch |
| Dimensions (Lx WxH) |
155mm(6.2") x 69mm(2.8")x 24mm(0.9")
- The pack has similar size as pack below.
|
| Weight |
410 grams (14.46 oz ) |
| Smart Tips |
|
| Applications |
- Can replace most of NiMH battery pack for 12V, 10-20W HID dive light.
- The battery can drive 12V DC motor for Mini submarines.
- Can replace almost every bike lighting system on the market, such as Nite-Rider, Light & Motion, Turbo Cat, Night Sun, Marwi, BLT, Vista, Cygolite, Nite Hawk, or Performance View Point at better quality and much lower price.
|
| Warning |
- Li-Ion battery may explode if misused. We are not responsible for any damages or losses caused by misuse (including but not limited to: improperly charging/discharging, any changes of this battery pack, mis-assembling battery packs).
- Always charge battery with attention. Battery pack shall be placed in a fire-proof place to avoid any accidents.
- Please check battery polarity before plugging battery into light. Never make wrong polarity connection. Please check
- For safety warning please see the link here
- California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
-
|
|
|
|
