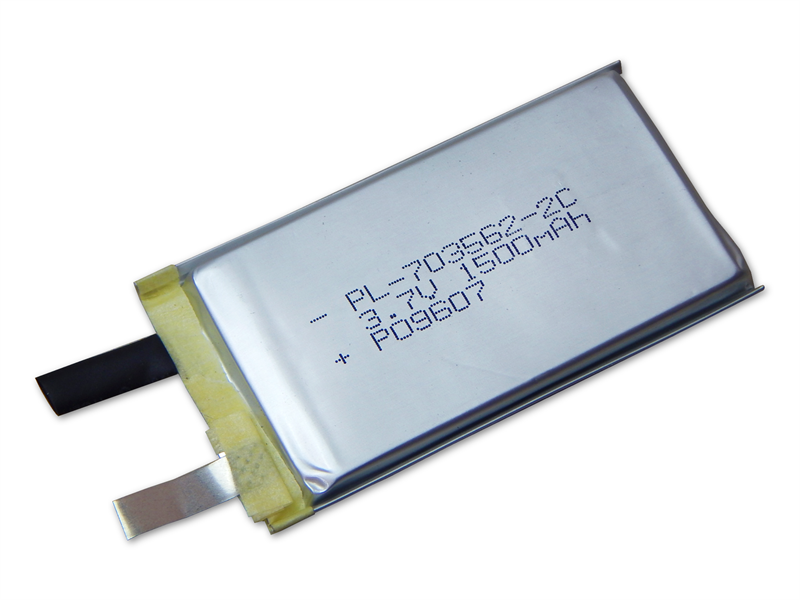

Polymer Li-Ion Cell: 3.7V 1500mAh (703562-2C, 5.55Wh, 3A rate) - UN38.3 Passed
|
|
Out of stock
Product ID # 4312
Part Number: PL-703562-2C
Quantity Discounts
| Quantity | Amount |
| 5 to 20 | $11.15 |
| 21 to 50 | $10.92 |
| 51 to 100 | $10.69 |
| 101 or more | $10.35 |
|
|
Features
| Update |
Specification updated on April 7th, 2022 |
| Chemistry |
Polymer Li-Ion 703562-2C cell |
| Voltage |
3.7V |
| Capacity |
Typical: 1500mAh (0.2C discharge)
Minmimum: 1400mAh (0.2C discharge) |
| Cycle life |
≥300 times |
| Charge Current |
Standard: 0.2C(300mA)
Maximum: 1C(1500mA) |
| Discharge Current |
Standard: 0.2C(300mA) ; working temperature: -20°C to 60°C
Maximum Continous: 2C(3000mA) ; working temperature: 0°C to 45°C |
| Dimension(LxWxH) |
68mm x 35mm x 6.8mm with tolerance ± 1 mm |
| Weight |
30 grams or 1.06 oz |
| Suggestions on designing Lithium battery packs |
What to consider when designing Lithium Batteries |
Please download the Specification here
Warnings
- The end user must have the technical knowledge necessary to charge and discharge Li-Ion batteries before making Li-Ion Battery Packs
- You must use a protection IC (PCB) to keep the battery and its packfrom over charging and over discharging.
- Please read more safety warning about Li-ion battery
- Batteryspace.com is NOT liable for any mis-use due to any other brand of PCB applied
- California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
|
Related Products
- Please choose our Smart Li-Ion Battery charger to recharge this battery
- If you DIY by yourself, you MUST install our PCB or your own PCB withthe followingfeature:
- 4.2V/cell over-charge protection
- 2.5V/cell over-discharge protection
- Max currentover-drain protection
- Shortcircuit protection.
- Other battery module made by 703562 cells can be found here
- Fire Retardant Bag to reduce the chance of damage if caughting fire
- You can find various connector here
|
|
|
|
|
|
|
|
Your Price: From $18.95 to $26.95
|
|
