Polymer Li-ion Battery: 7.4V 9Ah (66.6 Wh, 809797-1C) battery - UN38.3 Passed

Option 1: Wire Only
Option 1: Wire Only PL-809797A2SWR-V1: Molex Connector (P/N: 43645-0200) [Pin 1= Black (-), Pin 2 =
ratingratingratingratingrating
See Reviews
Your Price: From $110.95 to $115.95
Lead Time: 5 Business Days

Product Options

Connector Options:
Battery
Voltage Voltage: 7.4V (working)   8.4V ( peak)  5V ( cut-off)
Capacity 9000 mAh min. (53 wh)
Protection
  • 1x 6 Amp polyswitch
  • 1x PCB (6A) installed with the  battery pack and protects the battery from
    • Overcharge / Over-discharge / Over drain / Short circuits
Terminal
  • PL-809797-2SWR: 6" 18 AWG wire

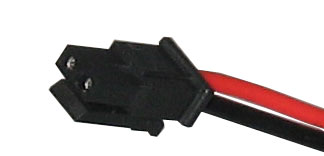

  • PL-809797A2SWR-V1: 5" 18 AWG with Molex Connector (P/N: 43645-0200) [Pin 1= Black (-), Pin 2 = Red (+)] for charge and discharge
    • Female pin (P/N: 43030-0001) x 2

Charge Current 5000mA Max
Discharge Current 5000mA Max
Dimensions 0.9" (22mm) thick 4.1"(104mm) width x 4.2" (107mm)
Weight 1.0lb (453g)
Related Products
Warning
  • Li-Ion battery may explode if misused. We are not responsible for any damages or losses caused by misuse (including but not limited to: improperly charging/discharging, any changes of this battery pack, mis-assembling battery packs).
  • Always charge battery with attention.  Battery pack shall be placed in a fireproof place to avoid any accidents.
  • Please check battery polarity before plugging battery into light. Never make wrong polarity connection.  Please check
  • For safety warning please see the link here
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
  • Option1/ Option 2
