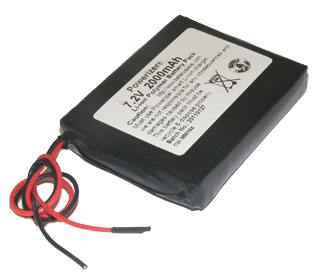

Polymer Li-Ion Battery: 7.4V 2Ah (14.8Wh, 3A rate, 605060)


Your Price: $33.50
In Stock

Product ID # 6049
Part Number:
CU-MM184

Non Stock Item. Available to order with lead time 5-10 Business Days to build.

Quantity Discounts

QuantityAmount
5 to 20$32.49
21 to 50$31.82
51 to 100$31.15
101 or more$30.15
*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Battery 7.4V 2000mAh is built by 2pcs of 3.7V 2000mAh (PL-605060-2C) cells
Two layer of black PVC
Voltage Nominal: 7.4V;
Maximum Charge Voltage: 8.4V;
Discharge Cut off Voltage: 6V
CC/CV charge
Capacity 2000mAh
Protection 1x 3A PCB (PCB-LI7.4V3A)
1x 3.5Amp polyswitch
Charge Current Standard: 400mA
Maximum: 1400mA
Discharge Current Standard: 400mA
Maximum: 3000mA
Terminal 6" 22Awg Open Wires
Dimension (LxWxH) 65mm (2.6") x 52mm (2") x 14mm(0.6")
Temperature ≤1 month: -20 to 45°C;
≤6 moths: 0 to 30°C ;
≤ 12 months: 20±5°C  (Best 20±5°C for long time)
Weight 3.5 Oz (100 grams)
Warnings California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
