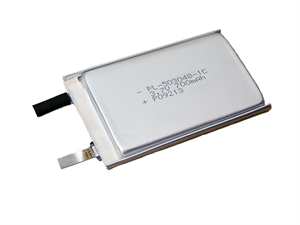

Polymer Li-Ion Battery: 3.7V 700mAh (503048-1C) 2.59Wh, 700mA rate - UN38.3 Passed -


Your Price: $6.50
In Stock

Product ID # 1253
Part Number:
PL-503048-1C

Quantity Discounts

QuantityAmount
5 to 20$6.30
21 to 50$6.17
51 to 100$6.04
101 or more$5.85

Features

Update on Jan 1, 2020
Sepecification Updated and this cell won't have IEC62133 certificate anymore.
Chemistry Polymer Li-Ion 503048 cell
Voltage 3.7V
Capacity Nominal:  700mAh (0.2C discharge)
Typical: 720mAh (0.2C discharge)
Cycle life ≥500 times
Charge Current Standard: 0.2C(140mA)/4.2V;
Maximum: 0.5C(350mA)/4.2V
Discharge Current Standard: 0.2C(140mA)/3.0V;
Maximum: 1.0C(700mA)/3.0V
Dimension(LxWxH) with tolerance ± 1 mm 48.5mm x 30.5mm x 5.0mm
Weight 11.5 grams or 0.41oz
Suggestions on designing Lithium battery packs What to consider when designing Lithium Batteries

Please download the Specification here

Warnings

  • The end user must have the technical knowledge necessary to charge and discharge Li-Ion batteries before making Li-Ion Battery Packs
  • You must use a protection IC (PCB) to keep the battery and its packfrom over charging and over discharging.
  • Please read more safety warning about Li-ion battery
  • Batteryspace.com is NOT liable for any mis-use due to any other brand of PCB applied
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
