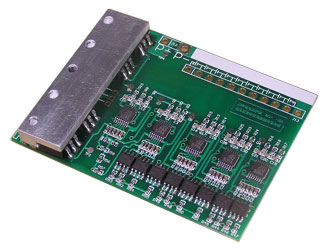

Protection Circuit Module (PCB) for Li-Ion (18650) Battery Pack - 36V(37V) (27A +/-1A limit) (#2341)

Your Price: $39.95
In Stock

Product ID # 2341
Part Number:
PCB-S10A27



Quantity Discounts

QuantityAmount
5 to 20$38.75
21 to 50$37.95
51 to 100$37.15
101 or more$35.95

 Protection Circuit Module Specifications  for 10 Cells 18650 Li-ion Battery  Pack

All Li-Ion Battery packs must connect to a protection circuit module to protect Li-Ion Battery from over charge, over discharge and prevent accidental battery explosion due to its extra high energy density. This protection circuit is specially designed for 37 V Li-Ion Battery pack made of 10 Li-ion cells. It can also be use for Polymer Li-Ion battery sold by Batteryspace.
Please connect individual battery to this according to the wiring diagram shown.
Please be advised that this circuit will provide the following protections:

  • Keep 37V Li-Ion Battery pack from overcharge
  • Keep 37V  Li-Ion Battery pack from overdischarge
  • Keep 37V Li-Ion Battery pack 's discharging current lower than 27 A

Apply for

  • 10 Cells  Li-ion / Li-polymer Battery Pack  ( 37V  up to 27 Ah)
  • Board Dimension: 2.4"(62mm) x 3.25" (83mm) x 0.4" (10mm)
  • Weight 6 oz (170 g)

PCB Indications

  • B+       Battery (+)
  • B-        Battery (-)
  • B1-      Connect between cell 1 and cell 2
  • B2-      Connect between cell 2 and cell 3
  • B3-      Connect between cell 3 and cell 4
  • B4-      Connect between cell 4 and cell 5
  • B5-      Connect between cell 5 and cell 6
  • B6-      Connect between cell 6 and cell 7
  • B7-      Connect between cell 7 and cell 8
  • B8-      Connect between cell 8 and cell 9
  • B9-      Connect between cell 9 and cell 10
  • P+       OUT (+) /Load (+)
  • C+       OUT (+) /Charge (+)
  • P-        OUT (-) /Charge(-) / Load(-)

 Electric  performance

  • Overcharge Protection voltage for single cell:   4.225V  +/- 0.025V
  • Overdischarge Protection voltage for single cell: 2.30V  +/-0.08V
  • Overcurrent  detection  Protection                    <=  27A~~33A
  • Supply current:                                                 MAX 300uA
  • Short circuit Protection
  • 0 V charge
  • Protection  circuitry  Resistance:                   <=  6.67 mohms
