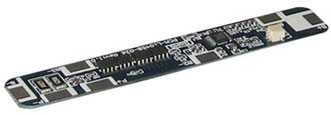

Protection Circuit Module (PCB) for 14.8V Li-Ion Battery Pack (10A limit) with Fuel Gauge Socket

Your Price: $12.99
In Stock

Product ID # 2497
Part Number:
PCB-S4A10L-GS



Quantity Discounts

QuantityAmount
5 to 20$12.60
21 to 50$12.34
51 to 100$12.08
101 or more$11.69
Protection Circuit Module Specifications for 14.8V Li-ion Battery Pack
  • All Li-Ion Battery packs must connect a protection circuit module to protect Polymer Li-Ion Battery overcharge and overdischarge and avoid battery from exploding due to its extra high energy density.
  • This protection circuit is specially designed for 14.8 V Li-Ion Battery pack
  • Please connect battery pack with the circuit as the following drawing with wire provided.
  • Please be advised that this circuit will provide the following protections:
    • Keep 14.8V Li-Ion Battery pack from overcharge
    • Keep 14.8V Li-Ion Battery pack from overdischarge
    • Keep 14.8V Li-Ion Battery pack's discharging current lower than 10A.
    • Avoid damage from short circuit and wrong polarity

Batteryspace is not responsible for any damage cause by misunderstanding and misuse! Please read the instruction carefully before assembling it to battery pack.

MODEL# PCM-CS04SH-05:  Apply for

    • 4 Cells  Li-ion /Li-polymer Battery Pack Protection

    • Adopt SEIKO S-8254 Protection IC

    • Adopt AO4419 MOSFET

    • Dimension (LxWxH): 100mm x 16mm x 4.0mm

    • Weight: 1 oz (28 g)
  • PCB Indications

    • B+       Battery (+)
    • B-        Battery (-)
    • B1-      Connect cell " 1"  and cell" 2"
    • B2-      Connect cell " 2"  and cell" 3"
    • B3-      Connect cell " 3"  and cell" 4"
    • P+        OUT (+) /Charge (+)/Load (+)
    • P-         OUT (-) /Charge(-) / Load(-)

     Electric  performance

    • Overcharge Protection voltage for single cell:   4.35V  +/- 0.025V
    • Overdischarge Protection voltage for single cell: 2.40V  +/-0.08V
    • Overcurrent  detection  Protection                    <=  10A
    • Supply current:                                              MAX 30uA
    • Short circuit Protection
    • Protection  circuitry  Resistance:                   <=  50 mOhms
