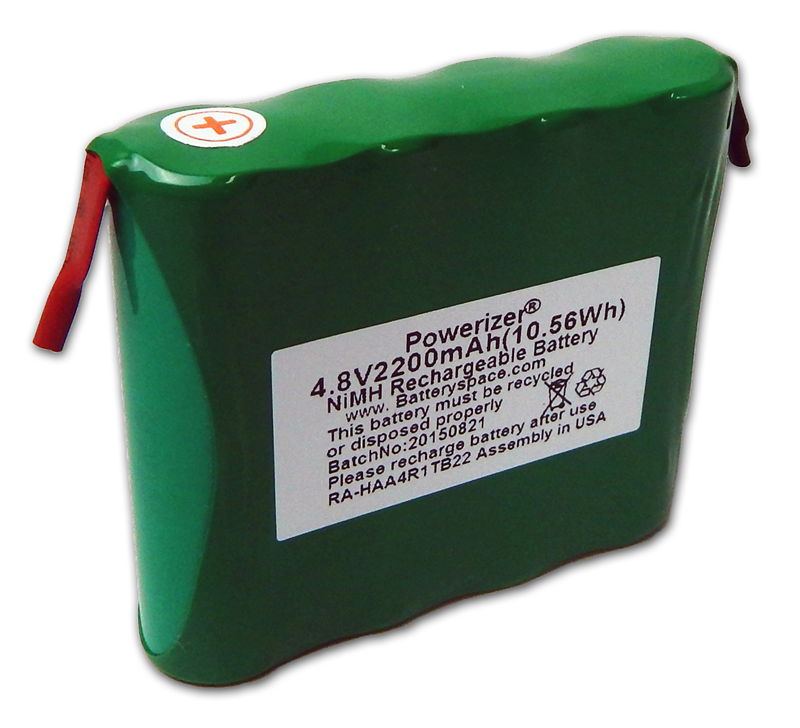

Custom NiMH Rechargeable Battery: 4.8V 2200mAh (4S/S, MH-AA2200B)


Option 2: with Hi-tec Female plug
ratingratingratingratingrating
See Reviews
Your Price: From $24.95 to $25.95

Product Options

Connector Option:
 Battery
 Voltage  Voltage:4.8 (working), 5.68 V ( peak), 4.0V ( min.)
 Capacity  2200mah, ( 2.2Ah) ,10.56 Wh
 Charging Rate  1.2A Max
 Terminal Charge/Discharge terminals:
  • RA-HAA4R1TB22: Solderable Tabs for easy DIY custom pack
  • RA-HAA4R1HT22: 22AWG wire with  Hitec female connector
  • CU-J1169: 6.0" 24AWG will Molex 5264 connector
    • Pin 1 = BLK (-)
 Discharging Rate  2.2 Amp in standard.
 Dimension (LxWxH)  57mm x 15 mm x 50mm (2.24" x 0.6" x 1.97")
 Weight  4.1 oz  (116g)
 Related Prodcuts
 Applications
  • Perfect for the airplane models of Hightec, Futaba and JR etc.
  • Perfect pack for DIY.
 Warnings
  • Please don't discharge the battery pack below 4.0V  ( 1.0 V / cell).  Deep discharge may damage NiMH battery pack.
  • Charge battery immediately every time it is discharged. Never store the battery pack at below 4V.
  • Please read more safety warning  at the link
Notes Things to know about Nimh Batteries
