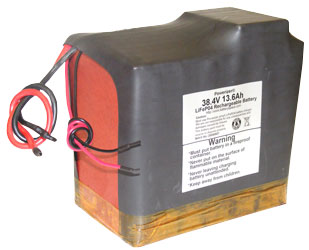

Custom LiFePO4 26650 Battery: 38.4V 13.2Ah (506Wh, 40A rate, 26650-3300) with PCM for E-Bike (47.52)

Option 1: Open End Wire Only
Option 1: Open End Wire OnlyOption 2: 4 inches long 14AWG with Standard Male Tamiya plug
Your Price: From $598.00 to $603.75
Lead Time: 5 Business Days / Hazmat handling fee required*

Product Options

Connectors:

Features

*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Packing
Voltage 38.4 V (working)   43.8 V (peak)  24 V ( cut-off)
Capacity 13.2Ah (506.88 Wh)
Cycle life
  • > 1000 cycles (80% of initial capacity @ 0.2C rate, IEC Standard),
  • Cycle life is 4 times more than NiMH pack, so it is much economic
Protection
  • One PCM (40A limited) installed with the  battery pack and protects the battery from
    • Overcharge (> 43.8 V)
    • Over discharge  (<24.0 V)
    • Over drain ( >40 Amp)
    • Short circuits
    • Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.
Prewired
  • Option 1:
    • Charge terminal: 6" long 18 AWG  open end wire
    • Discharge terminal:  6" long 12 AWG  open end wire
      • Red = Positive
      • Black = Negative
  • Option 2:
    • Charging Terminal: 4" long 14AWG Standard Male Tamiya plug
    • Discharging terminal:6" 10 AWG wire with standard E-bike connector
      • Red (Large female Pin) = Positive
      • Black (Small female Pin) = Negative
Charging rate 6.0A Max
Max. Discharging Rate 40 Amp limited by 12AWG wire
Dimensions(LxWxH) 166mm(6.6") x 114mm(4.4") x 166mm (6.6").
Weight 4944 grams (10.9lb)

Warnings

  • 38V LiFePO4 battery pack shall be cut-off at 38V during charging and 25V during discharging
  • Please click Knowledge on LiFePO4 battery to learn more details
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
