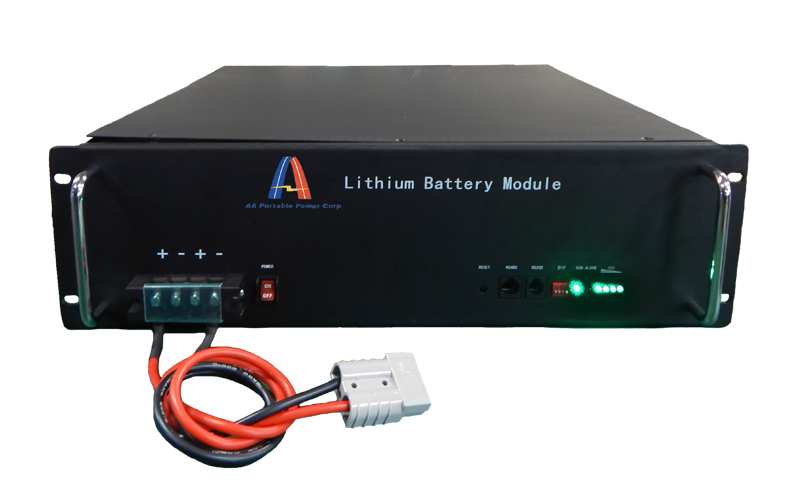

LiFePO4 Battery Pack: 51.2V 40Ah (2048Wh) with BMS (192)

Your Price: $2,499.50
In Stock

Product ID # 9982
Part Number:
BS-087

Lead time 2 weeks to build !


Features

*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Applications
  • BS-087 is based on the current communication operator of the new type back-up power under the new trends in communication requirements developed and advanced products.
  • Also can be widely used in indoor distribution station, marginal station, FTTX equipment, WLAN device, RRH (Remote Radio-Head), distributed communication power supply, etc
Features
  • Compact dimensions, light weight, easy and simple to operate, good performance, safe and effective
  • BMS comprehensive protection function (overvoltage, undervoltage, short circuit, reverse connection, overload, over current, temperature, low temperature equilibrium dormancy)
  • Safe, reliable and long cycle life
  • According to the actual need to multiple in series or in parallel to increase the output power and capacity
  • Can be used as charge and discharge at the same time
  • BMS will balance the cells inside automatically
Battery
  • Made of 16 pcs high-power LFP-G40 in 16S1P (2Rows of 8 cells) configuration
  • One BMS installed with the  battery pack and protects the battery
Voltage  48V DC (Nominal Voltage), 51.2 V (Working)  58.4 V (Peak)  40V ( cut-off)
Capacity  40Ah (2048 Wh)
Cycle life  >1000 cycles (80% of initial capacity @ 0.2C rate, IEC Standard)
Terminals
Charging Rate
  • 4A ~ 40A (Normally 4A ~ 12A)
Max. Discharging Rate  ≤40A
Operating Temperature  -20 ~ 65℃ (Recommended se temperature 0℃ ~ 50℃)
Dimensions(LxWxH)  19"(480mm) X 18"(450mm) X 5.3"(135mm)
Shipping Weight  100 LBs

Warnings

Please click Knowledge on LiFePO4 battery to learn more details
Please do not choose inverter great than 1800W
California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
