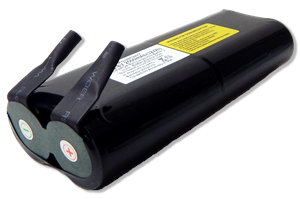

LiFePO4 A123 26650 Battery Pack: 12.8V 2500mAh (32Wh, 50A Rate) Rechargeable Battery Module with solder tabs


Your Price: $85.00
In Stock

Product ID # 9330
Part Number:
CU-JAS309

Lead Time: 5 Business Days / Hazmat handling fee required*

Features

*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Packing
Voltage 13.2V (Nominal),    14.6 V (peak)  10 V ( cut-off)
Capacity 2500Ah (32Wh)
Cycle life > 1000 cycles (80% of initial capacity @ 0.2C rate, IEC Standard)
Terminals Tabs (Part#TB-DHZ) can support surge discharge at 100A
Charging rate
  • Standard Charging: 2.5A
  • Maximum Charging: 10A
Discharging rate
  • Maximum Continuous Discharging :50A
  • CCA (< 10 sec):120A
Dimensions(LxWxH) 132mm (5.2") x 53mm (2.09 ") x 27 mm (1.06 ")
Weight 13 oz (368 g)

Warnings

  • This battery pack do not have protection circuit board. Please make sure your device has charging & discharge control,  which should compliance with cell's specification.
  • Please click Knowledge on LiFePO4 battery to learn more details
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings

Related Products

You may use our  LiFePO4 12.8V 1.5A smart charger, the charging time is around 2 hrs
