LiFeMnPO4 Prismatic Module: 3.2V 60 Ah, 3C Rate (192 wh) - UN38.3 Passed


Your Price: $100.00
In Stock

Product ID # 6334
Part Number:
LFP-G60

Features

Chemistry LiFeMnPO4 in prismatic case
Nominal Voltage   Average 3.2 V (working)  3.65V-3.8V (peak )  2.5 V ( cut-off low)
Capacity                  60Ah  (192 wh)
Energy Density 76.8Wh/kg
Cycle Performance ≥2000 (80DOD%@0.2C rate, IEC Standard)
Terminal Aluminum, Screw terminal
Operation Temperature
  • Charging: > 0°C (32F) - 65°C(149F)
  • Discharging:  -20°C (-4F) - 65°C(149F)
  • Self-discharging <3% monthly
  • Temperature Durability of case ≤ 135°C(275F)
Charging current
  • Best charging current <0.5C (30A)
  • Max. 3C (180A)
Discharging current
  • Constant discharge current: 180A (3C rate)
  • Impulse discharge current (<10sec): 600A (10C rate )
Dimensions(LxWxH) 126mm(5.0") x 65mm(2.6") x 180mm(7.1") , with the purple cover the height is 191mm (7.5")
Weight 2.5 kg (5.5 lbs)
Notes
  • International Customers: Due to the high shipping cost , we are sorry we do not issue warranty, return or refund for this item. You are buying at your own risk.
  • Please note: You're buying single Prismatic Module NOT screwed together by connection plates, if you want "4pcs Single Prismatic Module in pack" as attachment screwed together, please click here to buy.
  • This battery must be shipped by Class 9 package, and there is extra handling fee, please add handling fee into shopping cart

Accessories Included

  • /productimages/customize/6334_100t.jpg Included 8 x screws with 8 x washers
    • Screw Size: M4x0.7, length under the head: 8mm. Torque: 30 inches lbs.

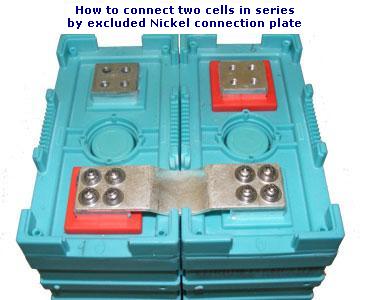

  • /productimages/customize/6334_101t.jpg Included 2x plates (TAB-EL-C) per Positive-Negative connection
    • For Qty = 1 battery, we do not send connection plates.
    • For Qty = 2 battery, we will send 2 pc of connection plates
    • For Qty = 3 battery, we will send 4 pc of connection plates
    • For Qty = 4 battery, we will send 6 pc of connection plates

Please download the Specification here

Applications

small EV or big robot

Advantage

  • Superior safety performance due to patented new safety valve and pressure cap designs
  • More robust connection due to new electrode terminal design using four rivets or four screws per terminal; Prevent loose connections caused by vibration
  • Batteries do not explode or catch fire when batteries are shorted or punctuated resulting in internal shorts
  • Improved cycle life
  • New cell structure better facilitates BMS integration and battery pack formation, and improves air circulation

Warnings

  • This LiFePO4 3.2V module does not have PCM for protection. You will need protection board to prevent from over charge , over discharge , short circuit and always store battery above 3.0V
  • Prismatic Lithium Ion Battery Safety Guidelines and Instructions
  • 3.2V LiFePO4 Prismatic battery pack shall be cut-off at 3.8V during charging and 2.5V during discharging. If over discharge below 2.5V, please recharge the pack right away. Otherwise the battery is over discharge and cannot recover!
  • International Customers: Due to the high shipping cost , we are sorry we do not issue warranty, return or refund for this item. You are buying at your own risk.
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings

Warranty

  • One year limited
  • International Customers: Due to the high shipping cost , we are sorry we do not issue warranty, return or refund for this item. You are buying at your own risk.

Related Products

  • You will need T25 Screwdriver to assmebly battery packs
  • Please order connection plates.
  • Please order Positive / Negative Terminal Plates
  • To build a high voltage battery pack(>12.8V), please choose our advanced LFP BMS to monitor and control each module for safety and long service life.
  • Please note: You're buying single Prismatic Module NOT screwed together by connection plates, if you want "4pcs Single Prismatic Module in pack" as attachment screwed together, please click here
