LiFeMnPO4 Prismatic Module: 3.2V 100Ah, 3C Rate (320Wh) - UN38.3 Passed
|
|
Need to ship by Class 9
Product ID # 5907
Part Number: LFP-G100
Battery Over 300Wh / Hazmat handling fee required*
|
Features
| Chemistry |
LiFeMnPO4 in prismatic case |
| Nominal Voltage |
Average 3.2 V (working) 3.65V-3.8V (peak ) 2.5 V ( cut-off low) |
| Capacity |
100Ah (320 wh) at 1.0C rate |
| Energy Density |
90-110Wh/kg |
| Cycle Performance |
2000 (80DOD%@0.2C rate, IEC Standard) |
| Terminal |
- Screw terminal
- Material of the terminals on the cells are made from aluminum.
|
| Operation Temperature |
- Charging: > 0°C (32F) - 65°C(149F)
- Discharging: -20°C (-4F) - 65°C(149F)
- Self-discharging <3% monthly
- Temperature Durability of case ≤ 135°C(275F)
|
| Charging current |
- Best charging current <0.5C (50A)
- Max. 3C (300A)
|
| Discharging current |
- Constant discharge current: ≤300A (≤3C rate)
- Impulse discharge current (<10sec): ≤1000A (≤10C rate)
|
| Dimensions(LxWxH) |
140x62x236mm(243mm with tall cover)- 5.5"x2.5"x9.3" (9.6" with tall cover) |
| Weight |
3.2Kg±100g (7LB) |
| Notes |
- International Customers: Due to the high shipping cost , we are sorry we do not issue warranty, return or refund for this item. You are buying at your own risk.
- Please note: You're buying single Prismatic Module NOT screwed together by connection plates, if you want "4pcs Single Prismatic Module in pack"
 as attachment screwed together, please click here to buy.
- * This battery must be shipped by Class 9 package, and there is extra handling fee, please add handling fee into shopping cart
|
Accessories Included

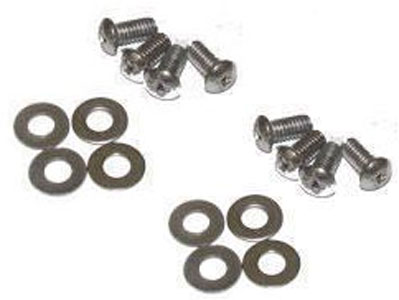

 Included 8 x screws with 8x washer
- Screw Size: M4x0.7, length under the head: 10mm. Torque: 30 inches lbs.

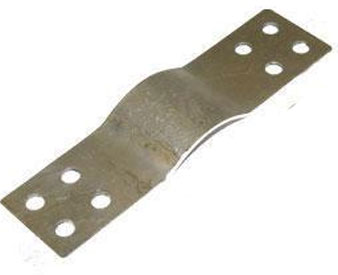

 Included 3x plates (84mm Long) per Positive-Negative connection
- For Qty = 1 battery, we do not send connection plates.
- For Qty = 2 battery, we will send 3 pc of connection plates
- For Qty = 3 battery, we will send 6 pc of connection plates
- For Qty = 4 battery, we will send 9 pc of connection plates
|
Please download the Specification here
Advantage
- Superior safety performance due to patented new safety valve and pressure cap designs
- More robust connection due to new electrode terminal design using four rivets or four screws per terminal; Prevent loose connections caused by vibration
- Batteries do not explode or catch fire when batteries are shorted or punctuated resulting in internal shorts
- Improved cycle life
- New cell structure better facilitates BMS integration and battery pack formation, and improves air circulation
|
Warnings
- This LiFePO4 3.2V module does not have PCM for protection. You will need protection board to prevent from over charge , over discharge , short circuit and always store battery above 3.0V
- Prismatic Lithium Ion Battery Safety Guidelines and Instructions
- 3.2V LiFePO4 Prismatic battery pack shall be cut-off at 3.8V during charging and 2.5V during discharging. If over discharge below 2.5V, please recharge the pack right away. Otherwise the battery is over discharge and cannot recover!
- International Customers: Due to the high shipping cost , we are sorry we do not issue warranty, return or refund for this item. You are buying at your own risk.
- California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
|
Warranty
- One year limited
- International Customers: Due to the high shipping cost , we are sorry we do not issue warranty, return or refund for this item. You are buying at your own risk.
|
Related Products
- Please choose our smart chargers below:
- You will need T25 Screwdriver to assmebly battery packs
- Please order connection plates.
- Please order Positive / Negative Terminal Plates
- To build a high voltage battery pack(>12.8V), please choose our advanced LFP BMS to monitor and control each module for safety and long service life.
- Please note: You're buying single Prismatic Module NOT screwed together by connection plates, if you want "4pcs Single Prismatic Module in pack" as attachment screwed together, please click here to buy.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
