Lithium 14500 Battery: 11.1V 800mAh (8.88Wh, Triangle) with 9V & BEC Terminator

Your Price: $30.00
In Stock

Product ID # 2681
Part Number:
PB-LC14500S3T-BEC

Lead Time: 5 Business Days!


Quantity Discounts

QuantityAmount
5 to 20$29.10
21 to 50$28.50
51 to 100$27.90
101 or more$27.00
*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...

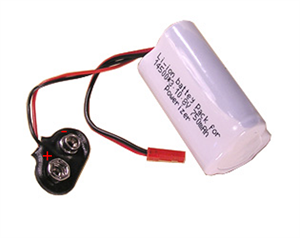

Battery 11.1 V Li-Ion rechargeable battery made of three cylindrical 14500 Li-Ion cells with PCB and 1.2A Polyswitch for full protection
Wrap by transparent or white  PVC shrink.
Capacity 800mah
Voltage Nominal: 11.1V; Maximum Charge Voltage: 12.6V; Discharge Cut off: 9V
Charge current Standard: 0.5C/375mA; Maximum: 1C /800 mA
Discharge current Standard: 0.5C/375mA; Maximum: 1C /800 mA
Terminal Charge: 5" BEC connector
Discharge: 5" 9V connector
Dimension (WxTxL) 1.2" x 1"x 2"  inch (30.48mm x 25.4mm x 50.8mm)
Weight 2.4 oz(68 g)
Related Product
Warning
  • Li-Ion Battery may explode if charging or discharging improperly. User must have the knowledge on how to charge and discharge Li-Ion battery before making Li-Ion Battery Pack. (Never use conventional DC adapter to charge the battery module) We are NOT responsible for any damage that is caused by the misuse of the Li-Ion Battery.
