Li-Ion Battery Pack: 12V-13.2V (86Wh, 4A rate, INR18650-29E) with Low Battery Alert


With Car PlugCU-JAS486-V3
Your Price: $149.55

Product Options

Terminal:
*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Battery
  • Build by 8 pcs Samsung INR18650-29E 2850mAh Cells, 4S2P configuration
  • Voltage output: 12V or 13.2V selectable
  • The smart battery pack is built with soft-start switch . This battery can replace most of rechargeable batteries for Bike Lights, HID or Halogen light up to 20w
    • For brighter light , please choose 13.2V
    • For Energy saving, please choose 12V
  • Splash-Proof cover power switch
  • Blue LED indicates power on
  • Build in Low battery alert function. If battery voltage drops below 11V, a tone sounds for 10 seconds to remind you to recharge the battery.
Voltage     Nominal : 12V or 13.2V selectable; Maximum charge voltage: 16.8V, Discharge cut off voltage: 10V
Capacity      5.8Ah
Protection
Max. Charge Current 4Amp
Max. Discharging Rate 4Amp
Terminal Options
Dimension (LxWxH)      Battery: 5"(127mm) L  x 3.1"(80mm) W x 1.7"(43mm) H
Weight      Battery: 1.0 lb 7.84 Oz  (678 grams)
Charger options

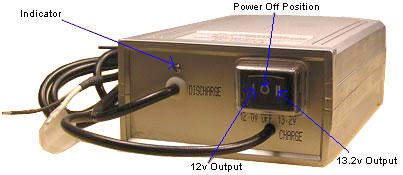

How to select battery pack voltage?
  • Power switch in the center position is power off
  • Power switch to the right, output is 13.2V
  • Power switch to left,  output is 12V
  • Battery pack can be charged when power switch is in any position

Warnings
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
