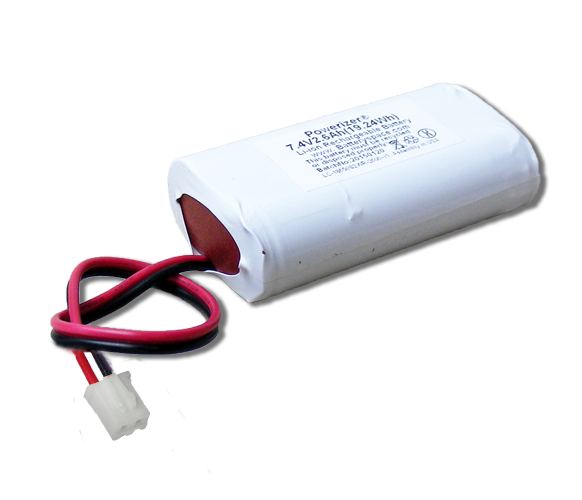

Li-Ion 18650 Battery: 7.3V 2.6Ah (18.98Wh, 5A rate, 2S/S, INR18650M26) - UN38.3 Passed / IEC62133-2:2017 Listed


V1: Micro Dean connectorV2: Standard Female Tamiya ConnectorV3: CN-JSTXH35V4: 5.5 x 2.1 female plug V5: 51191-0300V6: JST XHV7 & V8: PH-2P connectorV9: Molex 43645-0200
Your Price: Cell discontinued, replaced by #13519, #13519 has UN38.3 Only
Out of stock
Lead time 5-10 Business Days

Product Options

Terminal:
Battery
  • Made of 2 pcs LG INR18650 M26 cells
  • Side by side in series
  • Wrapped by white PVC tube
Voltage
  • Nominal: 7.3V;  Charge Cut off: 8.4V;  Discharge Cut off: 5.5V
Capacity
  • Nominal: 2600 mAh; Minimum: 2500mAh
Protection
  • 1x 6 Amp polyswitch
  • 1x PCB(5A) installed with the battery pack and protects the battery from
    • Overcharge / Over discharge / Over drain / Short circuits
Terminal   Options        CU-JAS4706" 22 AWG open end wire
       -(UN38.3 Passed, IEC62133-2:2017 listed with P/N: CU-JAS470)
       CU-JAS470-V1: 4" long 20 AWG twisted wire Micro Dean connector
  • Red Wire = Positive to male prong
       CU-JAS470-V2: 6" long 20 AWG with Standard Female Tamiya Connector
  • (positive on square opening)
       CU-JAS470-V3: with 2" CN-JSTXH35 connector
       CU-JAS470-V4: 6" with 5.5 mm x 2.1 mm Barrel Female Jack
       CU-JAS470-V5: 2.5" 22AWG with Molex 51191-0300,  Pin: 50802-9101x 2
  • Pin1: Black; Pin2: Red; Pin3 = N/A
      CU-JAS470-V6:with 3" JST XH connector
  • Pin 1: Black (Negative), Pin 2: Red (Positive)
  • Wire coming out from the middle of the two cells
      CU-JAS470-V7: 2" long 24 AWG wire with PH-2P connector (pin 1 = +)
     CU-JAS470-V8: 3" long 24 AWG wire with PH-2P connector (pin 1 = +)
       CU-JAS470-V9: with 3" 20AWG Molex (43645-0200) and Female pin (43030-0002)x 2
  • Pin 1= RED (+), Pin 2 = Black (-)
       CU-JAS470-V10: 6" 22AWG with Molex 50375033; Pins: 5263-PBT x 2
       -(no UN38.3 doc yet)
  • Pin 1 = positive; pin 3 = negative; No connect on pin 2
Charge Current        Standard: 0.5C/ 1250mA; Maximum:  1C / 2500mA
Discharge Current        Standard: 0.2C / 500mA; Maximum: 5000mA
Dimensions (LxWxH)        72mm x 38mm x 20mm
Weight        3.5Oz
Temerature
  • Charge: 0 to 45°C;
  • Discharge: -20 to 60°C;
  • Storage: ≤1 month: -20 to 60°C;  ≤3 months: -20 to 45°C; ≤ 1 year: -20 to 20°C
Related Products
Warning
  • Lithium battery may explode if not used properly. Please refer above specification. We are not responsible for any damages or losses caused by misuse, which include but are not limited to:  over charge, over discharge, over current, any changes of this battery pack, disassemble battery pack.
  • Always charge battery with attention.  Battery pack should be placed in a fireproof container during charge to avoid any accidents.
  • Please check battery polarity before connecting battery with device. Never make wrong polarity connection.
  • For safety warning please see the link here
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
