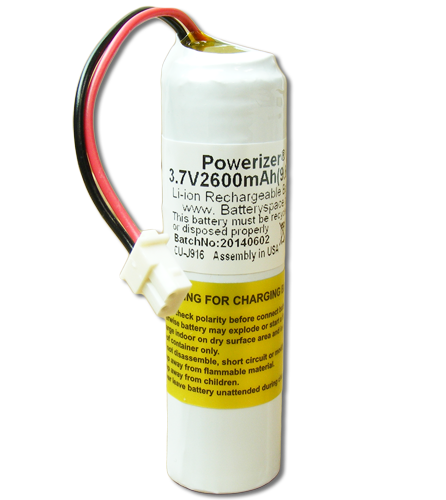

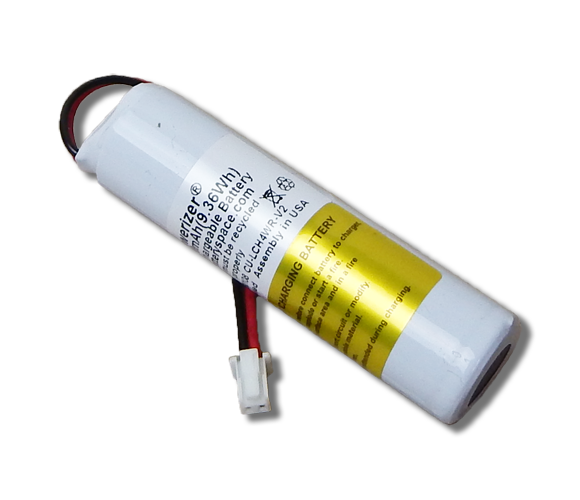

Li-Ion 18650 Battery: 3.65V 2600mAh (9.49Wh, 3A rate, INR18650M26)-UN38.3 Passed


with PAP-02V-S connectorwith Molex 5264 connectorWith JST-02TV-1 Connector CU-LCH4WR-M26V6
Your Price: From $24.50 to $29.50

Product Options

Terminal:
Battery
Voltage Nominal Voltage: 3.65V; Maximum Charge Voltage: 4.2V; Discharge Cut off: 2.75V
Capacity 2600 mAh
Protection
  • 1x round  PCB (3A)installed with the  battery pack and protects the battery from
    • Overcharge / Overdischarge / Over drain / Short circuits
  • 1x 3.5Amp polyswitch
Terminal Options
  • CU-LCH4WR-M26: 6" 24 AWG wire
  • CU-LCH4WR-M26V2: 4" 20 AWG wire
  • CU-LCH4WR-M26V3: 2.5" 24AWG wire with Molex 5264
  • CU-LCH4WR-M26V4: 3" 24 AWG with JST PAP-02V-S
  • CU-LCH4WR-M26V5: 2" 20AWG wire
  • CU-LCH4WR-M26V6: 4" 24AWG JST-PH connector (Pin 1 = positive)
  • CU-LCH4WR-M26V7: 3" 24AWG JST-02TV-1 (Pin 1=Negative)
Charge Current Standard: 0.2C (1250mA); Max: 1500mA
Discharge Current <3A, limited by PCB
Dimensions (DxH) 20 mm x 68 mm
Weight 55g  (1.94 oz)
Temperature Charge: 0 to 45°C
Discharge: -20 to 60°C
Storage:
  • 1 month: -20 to 60°C
  • 3 months: -20 to 45°C
  • 1 year: -20 to 20°C
Related Products
Warning
  • Li-Ion battery may explode if misused.  We are not responsible for any damages or losses caused by misuse (including but not limited to: mis-charging, mis-discharging, any changes of this battery pack, disassembling batterypacks).
  • Always charge battery with attention. Battery pack should be placed in a fireproof place to avoid any accidents.
  • Please don't use the battery modules to make series connection or parallel connection withmore than 2 packs, otherwise battery service life may be reduced.
  • For safety warning please see the link here
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
