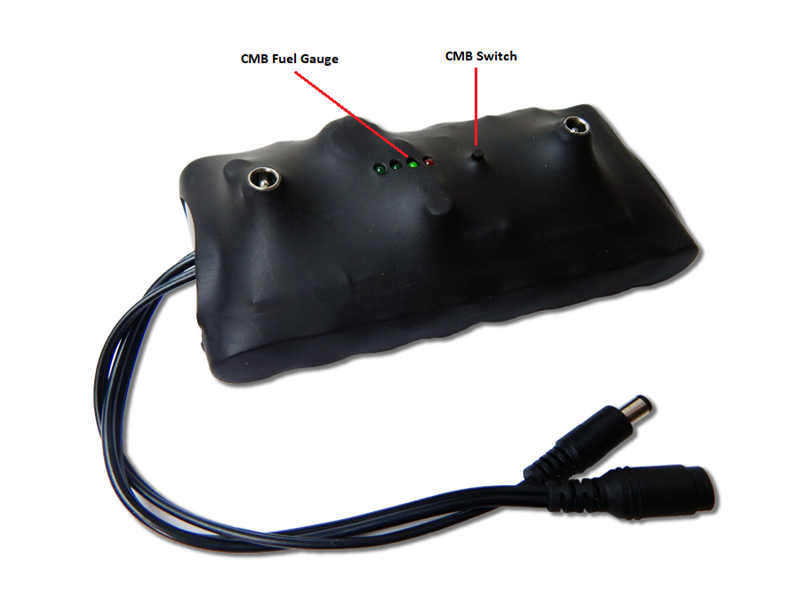

Li-ion 18650 Battery: 14.6V 5.2 Ah (76Wh, 4A rate, 8S/S, LR1865SK)
Your Price: $183.90
Available for order, non stock item

Product ID # 4602
Part Number: PR-CU-R233R

Lead Time: 5 Business Days
Add to a new shopping list
*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Battery
  • 14.6V 5200mAh battery pack is made by 8 pcs 18650 2600mAh cells packed by 4 series and 2 parallel (4S2P)
  • Packed side by side in flat ( 8 in one row) with CMB on top
  • The battery pack is  wrapped by heavy duty shrink tube
Voltage 14.6V (working)   16.8V ( peak)  11.0V ( cut-off)
Capacity 5200 mAh
Protection
  • 1x CMB installed with the pack and protects the battery from
    • Over-charge       (>16.8V)
    • Over-discharge  ( < 11.0 V)
    • Over drain ( >  12 Amp)
    • Short circuits
  • 1x 4.2 Amp Polyswitch
Terminal
Max. Charge Current 0.5C / 2600mAh
Max. Discharge Current 4.2 Amp limited by Polyswitch
Dimensions 147mm(5.8") x 71mm(2.8")x 41mm(1.6")
Weight 1.00 lb (450 grams)
Smart Tips You may choose our  AC-DC Adaptor to recharge this battery pack.  The estimated charging time is 3 hours
Applications Special requested
Warning
  • Li-Ion battery may explode if misused.  We are not responsible for any damages or losses caused by misuse (including but not limited to: improperly charging/discharging, any changes of this battery pack, mis-assembling battery packs).
  • Always charge battery with attention.  Battery pack shall be placed in a fire-proof place to avoid any accidents.
  • Please check battery polarity before plugging battery into light. Never make wrong polarity connection.  Please check
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
