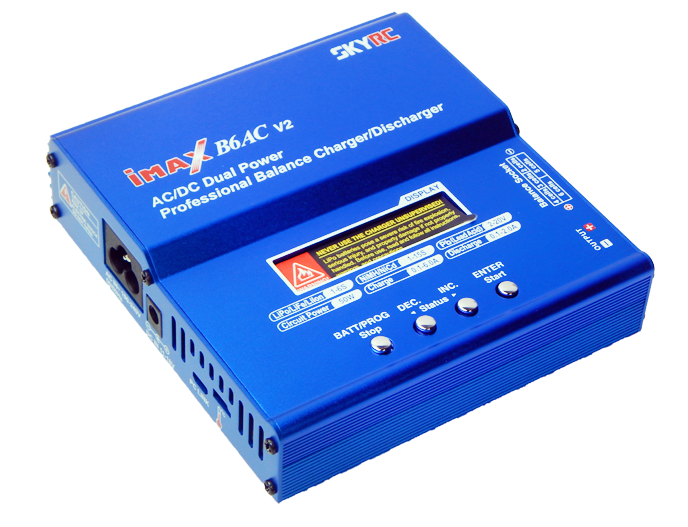

iMax B6 AC V2 Balance charger (Prod#10690)
Your Price: From $15.00 to $80.00

Product Options

Terminal:

IMAX B6AC V2 Charger, SK-100008
  • Lithium Battery Meter
  • Battery Internal Resistance Meter
  • Re-Peak Mode for NiNH/NiCd Battery
  • Terminal Voltage Control
  • PC Control & Firmware Upgradable
  • Maximum Safety Protection
Specification
DC Input Voltage 11-18V
AC Input Voltage 100-240V, US Plug
External Port
  • 2-6S Balance Socket-XH
  • Temperature Probe Socket
  • Battery Socket
  • DC Input
  • Micro USB Port for PC
Delta Peak Detection for NiMH/NiCd 5-15mV/cell/ Default: 4mV/cell
Charge Cutoff Temperature 20°C /68°F-80°C/176°F(adjustable)
Charge voltage
  • NiMH/NiCd: Delta peak detection
  • Lipo: 4.18-4.25V/cell
  • Li-ion: 4.08-4.2V/cell
  • LiFe: 3.58-3.7V/cell
Balance Current 200mA/cell
Reading Voltage Range 0.1-25.8V/cell
Battery Types/Cells
  • Lipo/Li-ion/LiFePO4: 1-6cells
  • NiMH/NiCd: 1-15cells
  • Pb(Lead Acid): 2-20V
Battery Capacity Range
  • NiMH/NiCd: 100-50000mAh
  • LiPo/Li-ion/LiFe: 100-50000mAh
  • Pb(Lead Acid): 100-50000mAh
Charge Current 0.1A-6.0A
Safety Timer 1-720minutes off
Charge Wattage 50W
Discharge Current 0.1A-2.0A
Discharge Cut-off Voltage
  • NiMH/NiCd: 0.1-1.1V/cell
  • LiPo: 3.0-3.3V/cell
  • LiFe: 2.6-2.9V/cell
  • Li-ion: 2.9-3.2V/cell
  • Pb(Lead Acid): 1.8V
Discharge Wattage 5W
Balance Cells 2-6 cells
Dimension 135mmx144mmx36mm
Weight 632g (1.4lbs)
Certificate CE, FCC, RoHS
Specification
Warning California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
Accessories Included
  • Part Number: CH-IMAX-B6ACV2
    • 1 x iMAX B6AC V2 Charger　
    • 1 x Power cord
    • 1 x T plug with banana connector charging cable
    • 1 x DC cable with Alligator Clip charging connector
    • 1 x T plug with Alligator Clip connector charging cable
    • 1 x T plug with Futaba connector charging cable
    • 1 x T plug with JST connector charging cable
    • 1 x T plug with XT60 connector charging cable
    • 1 x English manual
  • Part Number: CH-IMAX-B6ACV2-V1
    •  Based on CH-IMAX-B6ACV2, add one more Banana to anderson cable
  • Part Number: CH-IMAX-B6ACV2-V2
