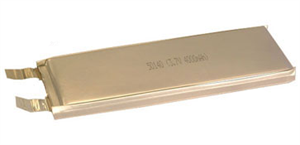

High Power Polymer Li-Ion Cell: 3.7V 4000 mAh (6050140-10C) 14.8Wh, 40A rate - UN38.3 Passed -
|
|
In Stock
Product ID # 3254
Part Number: PL-6050140-10C
Quantity Discounts
| Quantity | Amount |
| 5 to 20 | $19.35 |
| 21 to 50 | $18.95 |
| 51 to 100 | $18.55 |
| 101 or more | $17.95 |
|
|
Features
| Chemistry |
Polymer Li-Ion 6050140-10C cell |
| Capacity |
- Nominal: 4100mAh
-
Min. 4000 mAh
-
Average: 14.8 Wh (Capacity will reduce with cycle life , Battery labeled with Min. capacity at 300 cycles
-
Energy Density: 174 wh/kg
|
| Cycle life |
> 500 times |
| Charging rate |
recommend: 2A (0.5C rate) Max: 4A |
| Discharging Rate |
40A Max. (10 C rate) |
| Dimension(LxWxH) with tolerance +/- 1 mm |
141mm x 50.5mm x 6.0mm |
| Weight |
3.0 Oz (85 grams) |
| Suggestions on designing Lithium battery packs |
What to consider when designing Lithium Batteries |
| Recognized or tested by one of NRTL (National Recognized Testing Laboratory) , for more information, please contact us |
Please download the Specification here
Warnings
- Batteryspace.com is NOT liable for any mis-use due to any other brand of PCB applied
- Li-Ion Batteries may explode if charged or discharged improperly.
- The end user must have the technical knowledge necessary to charge and discharge Li-Ion batteries before making Li-Ion Battery Packs
- We must use a protection IC (PCB) to keep the battery and its pack from over charging and over discharging.
- Please read more safety warning about Li-ion battery (click to link)
- California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
|
Related Products
- Please choose Our smart Li-Ion battery charger to recharge this battery to charge different voltage pack
- If you DIY by yourself, you MUST install our PCB or your own PCB with the following feature:
- 4.2V/cell over-charge protection
- 2.5V/cell over-discharge protection
- Max current over-drain protection
- Short circuit protection.
- The polymer battery is excellent for ,EV(Electric Vehicle), e-bike , RC robot and other high drain DC device up to 100A
- Need a high polymer Li-Ion battery pack? Please click here to order.
- For battery packs build by 6050140 cells, please check here
|
|
|
|
|
