Gravity Impact Tester with Remote Control for Lithium Battery (UN 38.3.4.6)


Your Price: RFQ
Please email for lead time

Product ID # 11120
Part Number:
BS-105

Personalizations

BS-105 is a UL standard Gravity Impact Tester which can simulates an impact to a lithium battery based on UN38.3 standard (38.3 T6).

SPECIFICATIONS
Power
  • 220±10% VAC, Single Phase (110VAC 3-phrase available upon request ), 1KW
Cell Testing compatibility
  • Compatible with most commercialized Prismatic, Coin, Cylindrical, Pouch batteries
  • Testing Standards: UN 38.3, T6
Gravity Mass
  • Mass can be set at 9.1 Kg  or 10 kg. (Dead weight is available for minor adjustment of the impact force)
Drop Height
  • 610 mm - 1000 mm/(24" - 39.37") adjustable
Horizontal Steel Rod
  • 15.8 mm Dia steel rod is included for impact test
  • Customized diameter is available upon request
Chamber


  • Anti-explosion reinforced double layer steel chamber
    • Inside chamber:  made of 1 mm thickness cold rolled SS304 with thensile strength > 500 Mpa
    • Outside casing:   made of 3 mm thickness annealed A3 steel with Tensile strength > 400 Mpa
  • Explosion proof window: L382xW332mm
    • Double layer 5 mm thick anti-explosion glass with sandwiched shattering proof film
  • Max. Working Space in the chamber: L300mmxW250mmxH1000mm
  • Test plate for sample: 200 L x 200 W mm
  • Build-in illuminator
  • Rolling wheels are installed on bottom easy transportation.
Control Unit

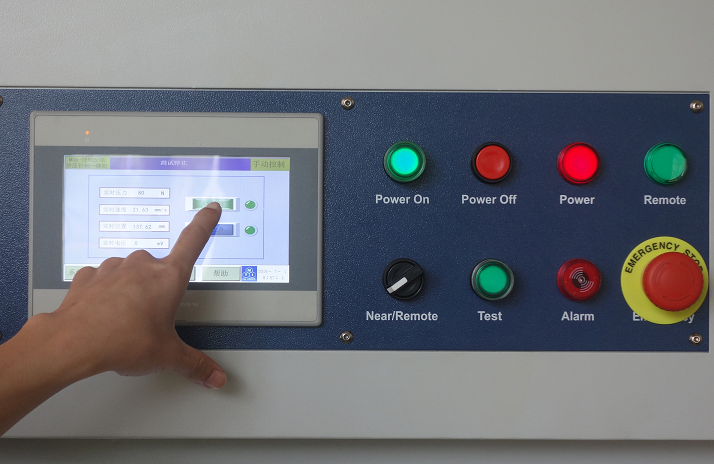

  • 6" color touch screen control panel for operating and setting parameters
  • Electric motor with worm gear reducer for raising and lowering the weight
  • In case of electrical outage, weight will be lowered and locked in position automatically

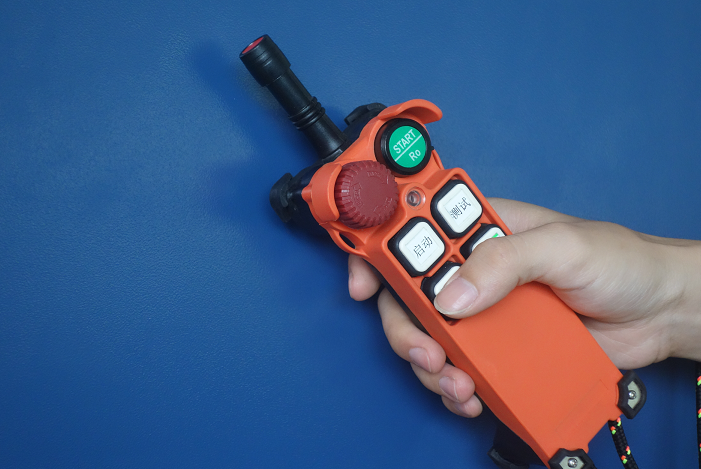

  • Once parameter setup on the touch screen, a wireless hand-hold remote controller will operate machine within 10 meters distance for the safest operation
Venting

  • Exhausted port is installed in back chamber which shall be connected to your venting system. (ducting and exhaust system are not included )
  • Warning:  Must keep exhaust system running during battery testing to avoid pressure build-up in the case of battery explosion.

Safety Door
  • A pressure relief door is on the back of the chamber. In the case of a battery explosion, the door will "pop" to release the pressure inside of the chamber.
  • Attention: Do not block the Pressure Relief Door
Free Fall Testing * (Optional)
  • This fixture is only for small single cell. For larger battery cell, please use BS-100
Net Weight & Dimension
  • 320KG (706LB)
  • 800Lx700Wx1850mm (31.5x27.6x73 inch)
Warranty One year limited manufacturer's warranty with lifetime support; extended warranty available upon request at additional cost.
Shipping Information
  • G.Weight: 417KG (919LB)
  • Dimension: 98x84x208CM; 39x33x82 inch
Compliance
  • All electric components ( >24V) are UL certified
  • If you need UL or CSA certificate for the equipment, there will be extra cost
