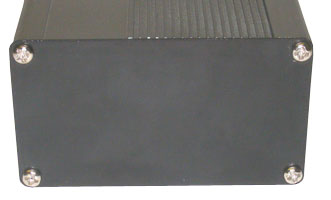

Fire Retardant Aluminum Enclosure: 90 x52x170 (mm) - RoHS Compliant


Your Price: $19.95
In Stock

Product ID # 5784
Part Number:
BX-HCT

  • 1 pc extruded Aluminum case body with two end open
    • External Dimension (LxWxH):  90mm(3.6") x 50.5mm(2.0") x 171mm(6.7")
    • Internal Dimension (LxWxH): 86.1mm(3.4") x 46.6mm(1.8") x 171mm(6.7")
  • 2 pc Black Aluminum Cover without hole
    • Cover's Dimension (LxWxH): 90mm(3.5") x 51mm(2.0") x 1.2mm(0.048")
    • Please DIY for outcoming wire socket
  • Box with 2 pcs cover install dimension(LxWxH): 170mm(7.0") x 90mm(3.6") x 52mm(2.0")
  • Net Weight: 13.4Oz (380 grams)
  • Included 8 pcs cover mounting screw (M6.1x13 Stainless Steel)
  • Dust, moisture proof & Fire Retardant
  • With Space for mounting PCB on the bottom of body.
  • Temperature range -20'C(-4'F) - 70'C(158'F)
  • Perfect use with Li-Ion 18650 cells with 16pcs maximum contain (Must DIY with our PCB (Protection Circuit Board)
Excluded hole for outcoming wire. Please DIY for outcoming wire socket
 How to DIY for output terminal. (Agian, this box is excluded hole for outcoming wire)
